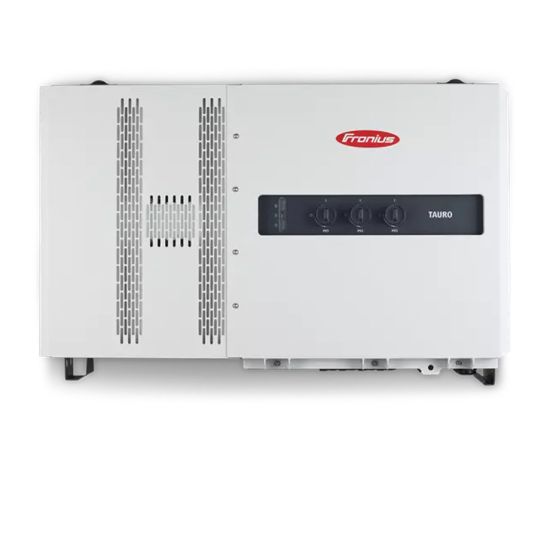

Fronius Wall & Ground Mount Grey Indoor and outdoor installation (direct in sun is possible) active cooling

$Fronius\Fronius_Tauro.JPG$

Description

The three-phase Fronius Tauro in the 50 kW power class promises maximum performance, even under the harshest conditions. With its smart hardware design, it not only contributes to BOS cost optimization, but also offers unprecedented flexibility in system design. The Fronius Tauro can be used to implement sophisticated roofs in both centralised (P variant) and decentralised system designs (D variant). Simplest installation and the fastest service on the market also guarantee maximum safety.

Key Specifications

SKU	FRNTAURO50-3-D
Brand	Fronius
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Robust and durable Lower costs and efficient servicing Intelligent control and an open system Design flexibility Repairable and sustainable
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	TAURO50-3-D
AC Max. Apparent Power	50 kVA
AC Nominal Voltage	180-270 Volt
AC Operating Frequency	50/60 Hz
AC Output Power	50 kW
AC Output Current	75.8 Amp at 220 Volt AC , 72.5 Amp at 230 Volt AC
Communication Port	Ethernet LAN RJ45 / WLAN / 2 x RS485
Connection Type	DC: MC4 / AC: Cable Lug/V Clamps
Cooling Method	Active Cooling Technologie / Double-Wall System
DC Input Power	75 kW
DC Input Voltage	200-1000 Volt
DC MPPT Voltage Range	400-870 Volt
DC Start-up Voltage	200 Volt
Depth	346.2 mm
Efficiency	98.50%
Height	755 mm
IP Rating	IP65
European Weighted Efficiency	97.8 / 98.3 / 97.9 / 97.7%
Max. Operating Altitude	4000 mtr
Mounting Method	Wall
MPPT Efficiency	>99.9%
Number of MPPTs	3
Operating Temperature	-40 to 65 deg C (Optional AC-Disconnect: From-30 to 65 deg C)
Phase	3 Phase
Power Factor	1 Inductive/Capacitive
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Width	1109 mm
