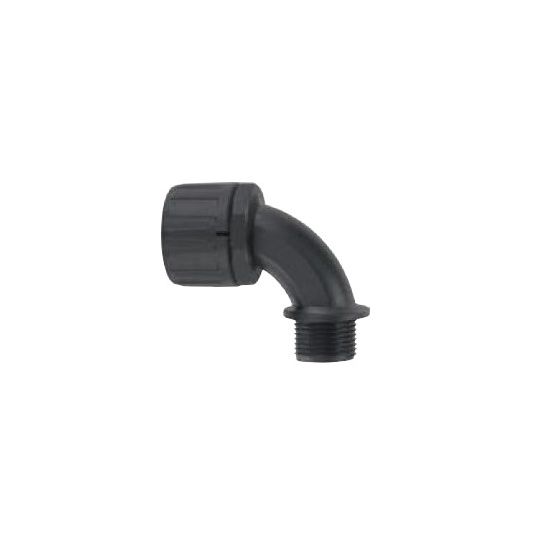

Flexicon Flexible Conduit Gland 90 deg 16mm Size PG9 Thread Size Nylon PA66 Black

$Flexicon\Flexicon_FPA_Gland_90_Degree.jpg$

Description

Flexible Conduit Gland, Fixed, Conduit Size: 16 mm, Thread Size: PG9, 90 deg Angle, Nylon PA66 Material, Black Colour, IP66 IP Rating, For Use With: Fine and Coarse Pitch Conduits, 3/4 in Thread Length, Temperature: -50 to 135 deg C, 15.8 mm External Diameter

Key Specifications

SKU	FLXFPA16-PG9-90B
Brand	Flexicon
Range Name	FPA System
Product Type	Glands & Terminators

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The IP rating onto a UNEF threaded connector may be dependent on the design of the connector Can be removed using a screwdriver Both 90 and 45 deg elbows incorporate swept bore to facilitate cable installation and protect cables when installed Halogen, sulphur and phosphorus free Tamper resistant
Standard Pack Size	10
UNSPSC Class	39131700
UOM	EA
Vendor Product	FPA16-PG9-90B
Colour	Black
Conduit Size	16 mm
Angle	90 deg
External Diameter	15.8 mm
For Use With	Fine and Coarse Pitch Conduits
IP Rating	IP66
Temperature	-50 to 135 deg C
Thread Length	3/4 inch
