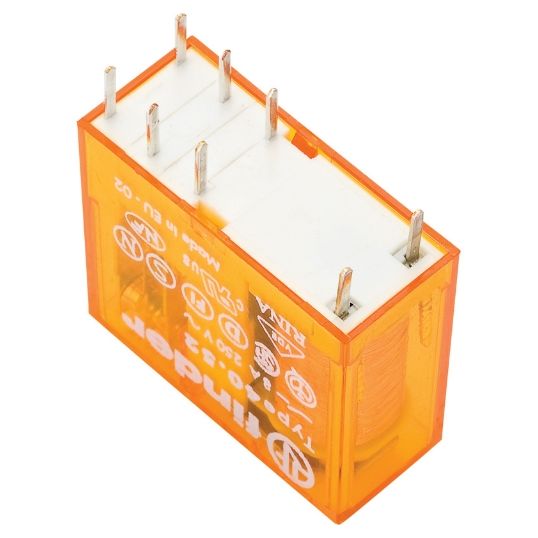

Finder Miniature Relay Plug In Or PCB Mounting 2P 2CO 8A 240V 8 Pin PCB

$Finder\Finder_4052.jpg$

Description

Miniature Printed Circuit Board Relay, 250 Volt AC, 240 Volt AC Coil Voltage, 8 Amp, 400 kW, 8 Pin PCB, 2 Pole, 2 Changeover Configuration, 3 ms Breaking/7 ms making Operating Time, 100000 Cycles, Plug-In/PCB Mounting, Silver Nickel (Ag/Ni) Contact, -45 to 85 deg C, 25 sq-mm Height, 29 mm Width, 12.4 mm Depth

Key Specifications

Barcode (EAN-13)	8012823240305
SKU	FID40.52240VAC
Brand	Finder
Range Name	Series 40

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space Without LED, test switch
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	4052240VAC
Contact Configuration	2 Changeover
Contact Material	Silver Nickel (Ag/Ni)
Current	8 Amp
Depth	12.4 mm
Height	25 sq-mm
Mounting Method	Plug-In/PCB
Number Of Poles	2 Pole
Operating Cycles	100000 Cycles
Operating Coil Voltage	240 Volt AC
Operating Time	3 ms Breaking/7 ms making
Pin Configuration	8 Pin PCB
Power Rating	400 kW
Temperature	-45 to 85 deg C
Voltage	250 Volt AC
Width	29 mm
