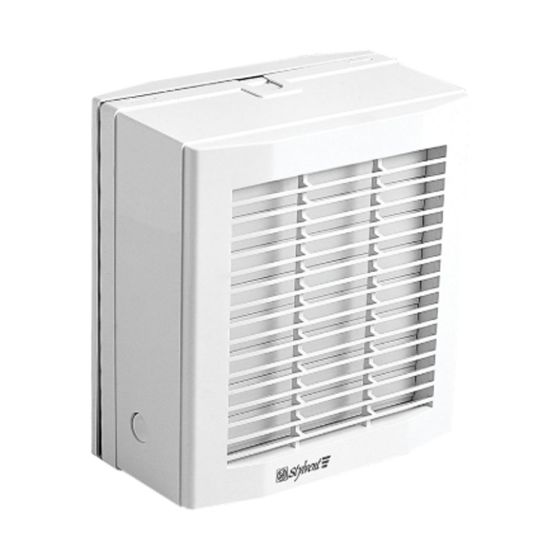

FantechTrade Exhaust Fan 300mm 230 Volt 0.3 Amp 0.1116 cu-m/hr 46dBA at 3m White

$FantechTrade\FantechTrade_HV_Stylvent.jpg$

Description

The Stylvent Series can be wall or window mounted making them suitable for a wide range of general residential and commercial exhaust or supply ventilation applications.

Key Specifications

Barcode (EAN-13)	841389309440
SKU	FANHV-300AE
Brand	FantechTrade
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Available in 3 sizes for 230 V supply Models 230 and 300 are suitable for supply or exhaust applications where as model 150 is suitable for exhaust only For applications requiring both supply and exhaust a reversing switch is available Electric shutters prevent outside air entering building when fan is switched off IPX4 protection rating Tough and long lasting ABS plastic 40 deg C maximum ambient temperature Optional weather cap for protection against harsh external conditions For wall mounting, a kit of threaded wall rods and sleeves can be supplied as an optional extra caters for walls ranging in thickness from 25 to 300mm
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	HV-300AE
Air Flow Cubic Meters per Hour	0.1116 cu-m/hr
Air Flow Litres per Second	0.31 l/sec
Colour	White
Current	0.3A
Duct Size	300 mm
Fan Speed	19 rps
Fan Size	300 mm
Frequency	50 Hz
Height	403 mm
IP Rating	IPX4
Noise Level	46 dBA at 3 mtr
Motor Type	External Rotor/Squirrel Cage Induction
Mounting Method	Window
Phase	1 Phase
Voltage	230 Volt
Wattage	68 Watt
Width	150 mm
