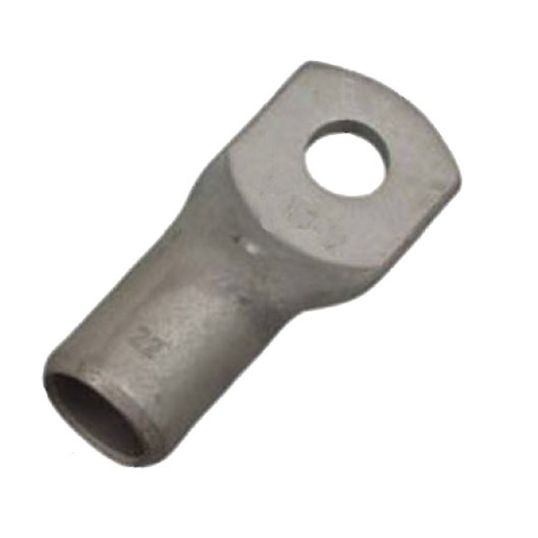

Elpress Crimp Lug Standard with Inspection Hole Copper 120mm M12 Stud 73mm OAL

$Elpress\Elpress_RF120-12.JPG$

Description

Crimp Lug Copper, 250 AWG, M12 Stud, Standard Barrel Type, 73 mm Overall Length, 1 Hole, 17 mm Inside Diameter, 32 mm Lug Width, 32 mm Lug Length, 22 mm A-F Hex Die, V1300V250, Electrolytic Copper Body, Copper, Tin Plated, With Inspection Hole

Key Specifications

SKU	EPRKRF120-12
Brand	Elpress
Range Name	Standard Lugs Copper
Product Type	Lugs Standard Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cable inspection hole for stranded (class 2) and flexible (class 5) Cu-conductors
Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	KRF120-12
A-F Hex Die	22 mm
Barrel Type	Standard
Body Material	Electrolytic Copper
Conductive Material	Copper
Crimping Die	V1300V250
Finish	Tin Plated
Inside Diameter	17 mm
Lug Length	32 mm
Lug Width	32 mm
Number of Holes	1 Hole
Overall Length	73 mm
Please Note	with Inspection Hole
Stud Size	M12
