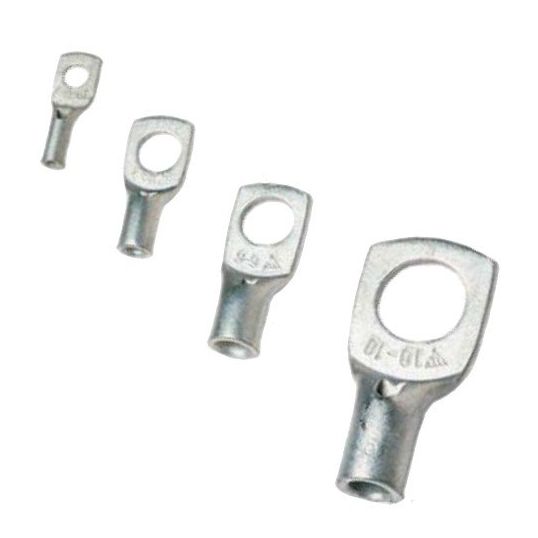

Elpress Crimp Lug Standard with Inspection Hole Copper 6mm M8 Stud 30mm OAL

$Elpress\Elpress_KR_Crimp_Links.jpg$

Description

Crimp Lug Copper, 10 AWG, M8 Stud, Standard Barrel Type, 30 mm Overall Length, 1 Hole, 4 mm Inside Diameter, 13 mm Lug Width, 9 mm Lug Length, 1.2 mm Lug Thickness, GWB4099/ES2258, Copper Body, Tin Plated, With Inspection Hole

Key Specifications

SKU	EPRKR6-8
Brand	Elpress
Product Type	Lugs Standard Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cable inspection hole for flexible (class5) and stranded (class 2) Cu-conductors
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	KR6-8
Barrel Type	Standard
Body Material	Copper
Conductor Size	10 AWG Wire
Crimping Die	GWB4099/ES2258
Finish	Tin Plated
Inside Diameter	4 mm
Lug Length	9 mm
Lug Thickness	1.2 mm
Lug Width	13 mm
Number of Holes	1 Hole
Overall Length	30 mm
Please Note	with Inspection Hole
Stud Size	M8
