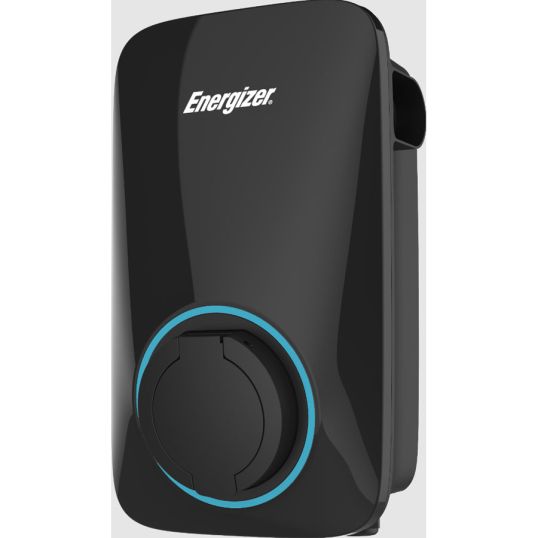

Energizer AC Electric Vehicle Charger 22kW 400V 32A 3Ph Type 2 Socket 5m IP55 Black 400VAC 32A 50/60Hz 2000m IK08 5-95%

$EnergizerSolar\EnergizerSolar_ENEVA22S022AUBL.jpg$

Description

The Energizer Solar EV charger adopts a streamlined and simple design, which is more refined and technology advanced. Through the App, the car owner can choose the Bluetooth smart lock, timing charging function, or modify it to plug and play mode. At the same time, it can monitor charging information, set EV charger parameters, bind equipment and authorization, and upgrade remote software.

Key Specifications

SKU	ENSENEVA22S022AUBL
Brand	Energizer
Range Name	EV Charger
Product Type	AC Electric Vehicle Charger

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	3 year warranty
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	ENEVA22S022AUBL
Certifications	CE / ISO
Communication Protocol	OCPP 1.6 JSON / OCPP 2.0
Cord Length	5 mtr
Connector Type	Type 2 Socket
IK Rating	IK08
Input Current	32 Amp
Input Frequency	50/60 Hz
Input Voltage	400 Volt AC
IP Rating	IP55
Item Weight	6.5 kg
Operating Temperature	-25 to 50 deg C
Max. Operating Altitude	<2000 mtr
Output Current	32 Amp
Output Voltage	400 Volt AC
Please Note	Color: Black
Phase	3 Phase
Power Output	22 kW
Standards	EN / IEC 61851-1: 2019 / EN / IEC 61851-21-2: 2021 / IEC 14443 A
Relative Humidity	5-95%
Wireless Technology	Plug&Play / RFID / App / 4G
