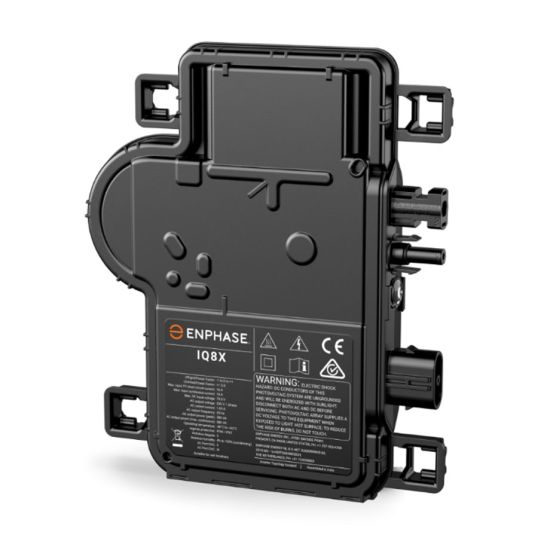

Enphase IQ8X Microinverter 384VA Peak Power MC4 DC Bulkhead

$Enphase\Enphase_IQ8X-80-M-INT.JPG$

Description

The smart grid-ready IQX Microinverters1, 2 are designed to match the latest generation high-output PV modules. These microinverters have the best in class energy production and highest reliability standards in the industry, and with rapid shutdown functionality, they meet the highest safety standards.

Key Specifications

SKU	ENPIQ8X-80-M-INT
Brand	Enphase
Product Type	Solar Microinverter

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Compatible with existing IQ7 systems Seamlessly expand your solar capacity as your energy requirements increase Lightweight and compact with integrated Staubli MC4 connectors for easy installation Fast installation with simple AC cabling Faster firmware upgrades enabled by the new integrated circuit technology
Standard Pack Size	18
UNSPSC Class	26111600
UOM	EA
Vendor Product	IQ8X-80-M-INT
AC Max. Apparent Power	384 VA
AC Nominal Voltage	230 Volt
AC Operating Frequency	50 Hz
AC Output Power	384 Watt
AC Output Current	1.67 Amp
Communication Port	Power Line Communication (PLC) 110-120 kHz (Class B), Narrowband 200 Hz
Cooling Method	Natural Convection No Fans
DC Input Power	505 Watt
DC Max. Input Current	10 Amp
DC Input Voltage	79.5 Volt
DC Operating Voltage	79.5 Volt
Depth	30.2 mm
Efficiency	97.50%
Height	212 mm
IP Rating	IP67
European Weighted Efficiency	96.70%
Max. Operating Altitude	2600 mtr
Operating Temperature	-40 to 65 deg C
Power Factor	1 (0.80 Leading-0.80 Lagging)
Relative Humidity	4-100% Condensing
Topology	Isolated (HF Transformer)
Total Harmonic Distortion	<5
Width	175 mm
