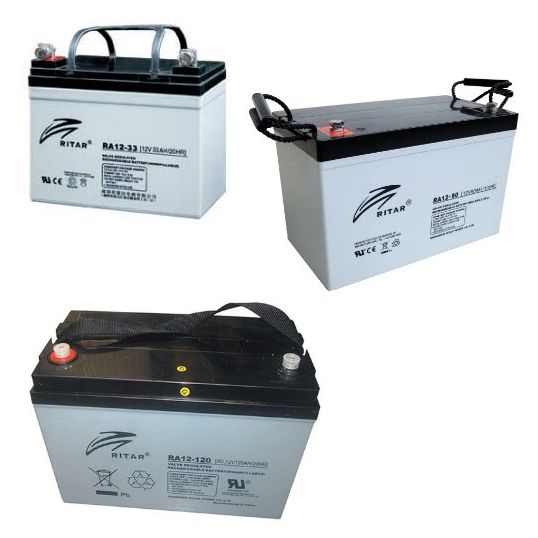

Ritar AGM Battery Standby Sealed Lead Acid 12V 100AH

$Ritar\Ritar_RA_Series_Batteries.jpg$

Description

AGM Battery Standby, Sealed Lead Acid, 12 Volt, Max. Discharge: 1000 Amp, Short Circuit: 2200 Amp, Capacity: 100 Ah, Internal Resistance: 5 MOhm, Terminal Type: F15/F12, Terminal Position: C, Shelf Life: 10 Years, ABS, -20 to 60 deg C, 235 mm Height, 169 mm Width, 306 mm Depth

Key Specifications

SKU	ENIRA12-100S
Brand	Ritar
Range Name	RA Series
Product Type	Specialty Batteries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good high rate discharge performance Compact design, lower internal resistance Structure Pasted flat type, with patent formula of AM Plate Two or more types terminals are convenient for selection Using improved AGM separator, makes lower resistance, higher assembling pressure to increase deep cycle life Battery case made of high strength ABS(UL94-HB) and UL94-V0 Terminal sealing double sealing technics(mechanical + epoxy gule) It is suitable for UPS/EPS, medical equipment, emergency light and security system applications
Standard Pack Size	1
UNSPSC Class	26111700
UOM	EA
Vendor Product	RA12-100S
Case Material	ABS Plastic
Chemical System	Sealed Lead Acid
Depth	306 mm
Height	235 mm
Max. Discharge Current	1000 Amp
Nominal Capacity	100 Ah
Nominal Voltage	12 Volt
Nominal Internal Resistance	5 MOhm
Shelf Life	10 Years
Short Circuit Current	2200 Amp
Temperature	-20 to 60 deg C
Terminal Position	C
Terminal Type	F15/F12
Width	169 mm
