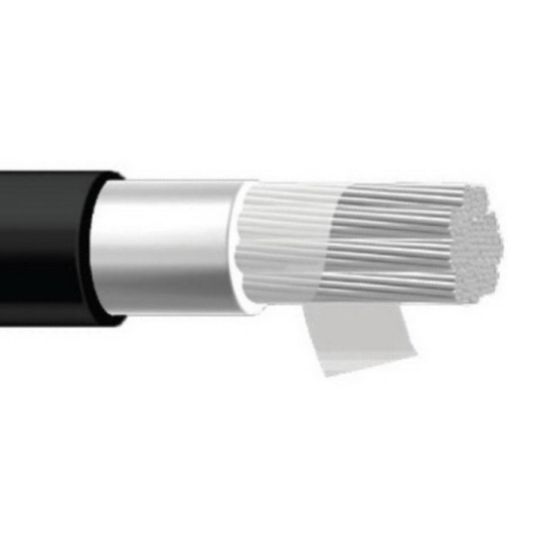

Elcon Cables 50mm SDI Cable 100mtr

Description

SDI Cable, 50 mm, Tinned Annealed Copper, 1.9-3.3 kV, 270 Amp, 1 Core, 384/0.41 mm Strands, 16.4 mm Overall Diameter, 100 mtr Length, Static 65.6 mm Flexible 82 mm Bend Radius, 1.8 mm Insulation Thickness, 1 mm Sheath Thickness, DC: 0.393 MOhm/m Insulation Resistance, 3GI3 Special EPR Compound Insulation, 5GM3 Rubber Sheath, Black Sheath, -25 to 110 deg C

Key Specifications

SKU	ELNCR-SDI50B3.3KVM
Brand	Elcon Cables
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Excellent flexibility Flame retardant and submersible to 100 m UV, sunlight, ozone, oil resistant
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CR-SDI50B3.3KVM
Bend Radius	Static 65.6 mm/Flexible 82 mm
Conductor Size	50 mm
Conductor Type	Tinned Annealed Copper
Current	270 Amp
Insulation Material	3GI3 Special EPR Compound
Insulation Resistance	DC: 0.393 MOhm/m
Insulation Thickness	1.8 mm
Number of Cores	1 Core
Overall Diameter	16.4 mm
Sheath Colour	Black
Sheath Material	5GM3 Rubber
Sheath Thickness	1 mm
Stranding	384/0.41 mm
Temperature	-25 to 110 deg C
Voltage	1.9-3.3 kV
