Elcon Cables 16mm SDI Cable 100mtr
Loading...
Description

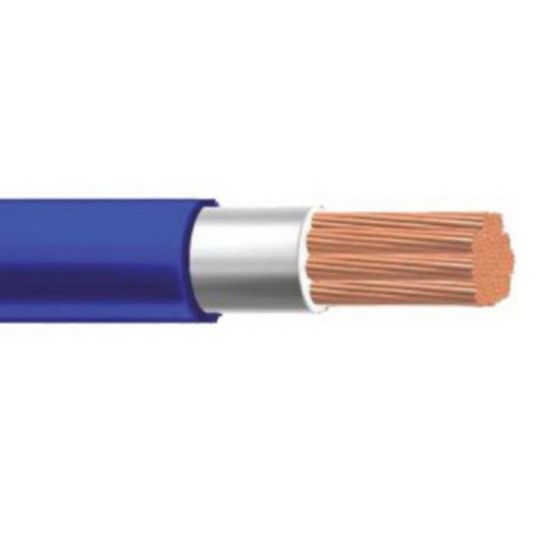

Flexible Power Cable, Double Insulated, Heavy Duty, 1 Core, 16 mm, Plain Annealed Copper, 0.6/1 kV, 100 Amp, 9.9 mm Overall Diameter, Bend Radius: Static - 39.6 mm Flexible - 59.4 mm, 1 mm Insulation Thickness, 1.25 mm Sheath Thickness, Insulation Resistance: DC - 1.21 MOhm/m, V-90HT PVC Insulation, Nitril Modified PVC (NBR) Sheath, Black Sheath, 90 deg C
Key Specifications
| SKU |
ELNCF-DIPF16BM
|
|---|---|
| Brand |
Elcon Cables
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CF-DIPF16BM |
