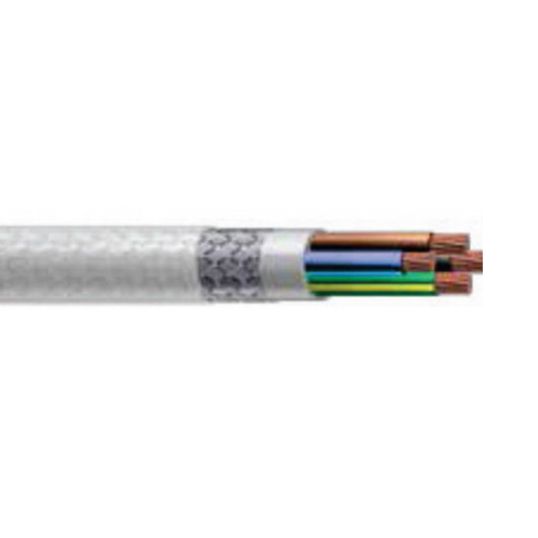

Elcon Flexible Cable VSD EMC Screened Heavy Duty 3 Core & 3 Earth 16 mm 0.6/1kV PVC/Tinned Copper Braid/PVC Clear

Description

VSD/EMC Cable, 16 mm, Class 5 Annealed Copper, 0.6-1 kV, 3 Core + 3 Earth, 21.8 mm Overall Diameter, 163.5 mm Bend Radius, 80% Screen Coverage, Tinned Copper Braid Screen, Brown/Black/Grey/Green/Yellow Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Clear Sheath, 75 deg C, RoHS

Key Specifications

SKU	ELNCE-EMC4G16SEKM
Brand	Elcon Cables
Product Type	VSD/EMC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RoHS complaint
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CE-EMC4G16SEKM
Bend Radius	163.5 mm
Conductor Size	16 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Black/Brown/Grey/Green/Yellow
Insulation Material	V-75 PVC
Number of Cores	3 Core + 3 Earth
Overall Diameter	21.8 mm
Screen Coverage	80%
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	4V-75 PVC
Standards	RoHS
Temperature	75 deg C
Voltage	0.6-1 kV
