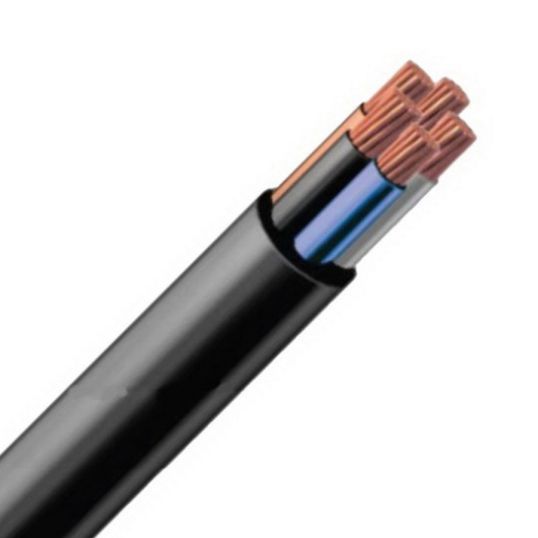

Elcon 1.5mm 3 Core + Earth Black Flexible Cable Heavy Duty EPR/CPE

Description

Flexible Cable, Heavy Duty, 1.5 mm, Class 5 Tinned Copper, 0.6-1 kV, 20 Amp, 3 Core + Earth, 10.4 mm Overall Diameter, 41.6 mm Static/52 mm Flexible Bend Radius, 1.7 mm Sheath Thickness, DC: 13.7 mOhm/km ConductorResistance, Brown/Black/Grey/Green/Yellow Core, EPR (R-EP-90) Insulation, CPE Sheath, Black Sheath, Static: -40 to 90 deg C/Flexible: -25 to 90 deg C

Key Specifications

SKU	ELNARFM4G1.5
Brand	Elcon Cables
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Submersible to 200mtrs Suitable for fresh water, salt water, sewage/contaminated water UV, Sunlight, oil and weather resistant Flame retardant to IEC 60332-1-2:2004, EN60332-1-2-2004 Maximum permisible short circuit temperature 1s 250 deg C
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	ARFM4G1.5
Bend Radius	Static 41.6 mm - Flexible 52 mm
Conductor Resistance	13.7 mOhm/km
Conductor Size	1.5 mm
Conductor Type	Class 5 Tinned Copper
Core Colours	Brown/Black/Grey/Green/Yellow
Current	20 Amp
Insulation Material	EPR (R-EP-90)
Number of Cores	3 Core + Earth
Overall Diameter	10.4 mm
Sheath Colour	Black
Sheath Material	CPE
Sheath Thickness	1.7 mm
Standards	AS/NZS 1125 IEC 60228
Temperature	Static -40 to 90 deg C Flexible -25 to 90 deg C
Voltage	0.6-1 kV
