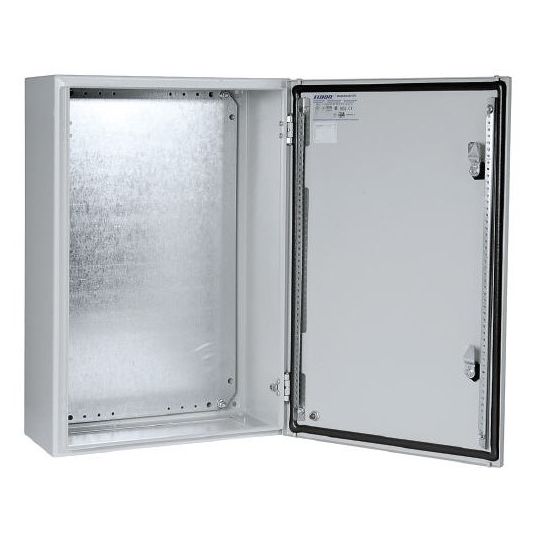

Eldon Enclosure Single Door General Purpose Industrial RAL 7035 Light Grey IP66 Mild Steel 500 Wx260 Dx700 H mm

Description

Enclosure Single Door General Purpose Industrial, 1 Door, Wall Mount, IP66, NEMA 4X, 12, 13, Mild Steel Housing, Mild Steel Door, Galvanized Steel Mounting Plate, FIP Polyurethane Gasket, RAL 7035 Light Grey, Powder Coated, 700 mm Height, 500 mm Width, 260 mm Depth, Please Note: Indoor Use

Key Specifications

Barcode (EAN-13)	8713574128439
SKU	ELDMAS0705026R5
Brand	Eldon
Range Name	MAS Series
Product Type	Enclosures Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Over 50 stocked sizes ensuring you have a high quality product ready for any situation in exactly the right size IP66 (MAS)/IP55 (MAD) and IK10 protection with fully folded and seam welded mild steel contruction providing the highest protection for your internal components, for a range of indoor applications (NOTE-Optional glazed door models are IP55/IK08) Wall fixing holes are pressed out 2mm allowing for the enclosure to lay on its back with no damage to the rear Strengthened over folded front frame serves as a gutter to keep liquids away from the polyurethane gasket Concealed hinges with captive hinge pins provide 130 degree opening and clean smooth lines, plus easy removal for maintenance and extra resistance to vibration Gland plate installed as standard towards the rear of the enclosure to make for easy wiring Comes with galvanised mounting plate as standard with gland plate opening same width as mounting plate for easy installation. Mounting plate is marked at 10mm intervals for easy horizontal positioning of equipment Reversible door allows for flexibility in installation with the same enclosure able to be used in double the applications A large range of custom locking options available to replace the standard 3mm double-bit lock
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	MAS0705026R5
Colour	RAL7035 Light Grey
Depth	260 mm
Door Material	Mild Steel
Finish	Powder Coated
Gasket Material	FIP Polyurethane
Height	700 mm
Housing Material	Mild Steel
IP Rating	IP66
Mounting Method	Wall
Mounting Plate Material	Galvanised Steel
NEMA Rating	NEMA 4X/12/13
Number of Doors	1
Please Note	Indoor Use
Width	500 mm
