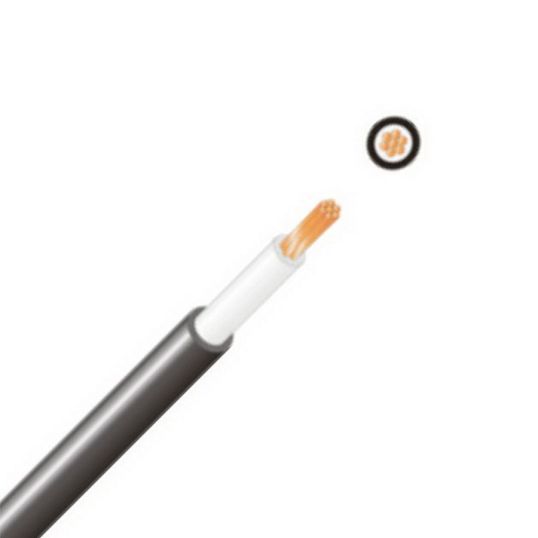

Electra Circular Power Cable XLPE 1 Core 25mm 0.6/1kV Plain Annealed Copper XLPE/PVC Black

Description

Circular XLPE Cable, 25 mm, Annealed Copper, 0.6-1 kV, 1 Core, 19/1.35 mm Strands, 11.4 mm Overall Diameter, 170 mm Bend Radius, 0.9 mm Insulation Thickness, 1.4 mm Sheath Thickness, DC: 0.727 Ohm/km AC: 0.932 Ohm/km Conductor Resistance, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	ELCXLPE1250
Brand	Electra
Product Type	Cables Circular

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XLPE1250
Bend Radius	170 mm
Conductor Resistance	DC: 0.727 Ohm/km AC: 0.932 Ohm/km
Conductor Size	25 mm
Conductor Type	Annealed Copper
Insulation Colour	Natural
Insulation Material	X-90 XLPE
Insulation Thickness	0.9 mm
Number of Cores	1 Core
Overall Diameter	11.4 mm
Sheath Colour	Black
Sheath Material	5V-90 PVC
Sheath Thickness	1.4 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Temperature	90 deg C
Stranding	19/1.35 mm
Voltage	0.6-1 kV
