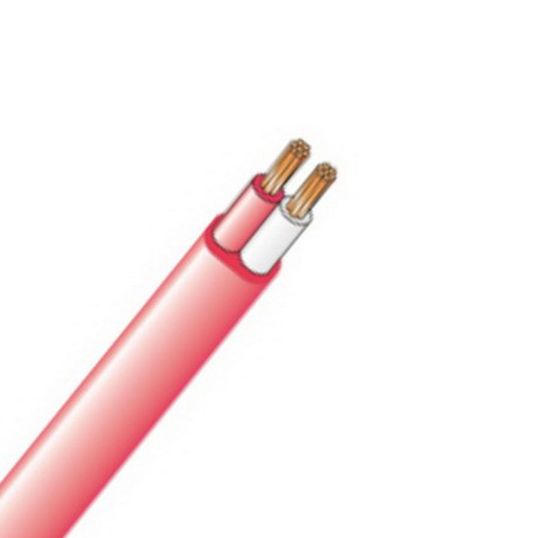

Flat Twin Fire Control Cable, 2 Core, Light Duty, 1.5 mm, Plain Annealed Copper, 250/250 Volt, 15 Amp, 2x7/0.5 mm Strands, 4.3 mm x 7 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: DC: 13.6 Ohm/km, V-75 PVC Insulation, 4V-75 PVC Sheath, Red White Cores, Red with White Trace Sheath, AS/NZS 3808, Printing “LVin
Additional Information
Brand | Electra |
---|---|
Standard Pack Size | 200 |
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | XFC7502-LD-200 |
Conductor Type | Plain Annealed Copper |
Conductor Resistance | DC: 13.6 Ohm/km |
Core Colours | Red/White |
Current | 15 Amp |
Insulation Material | V-75 PVC |
Insulation Thickness | 0.6 mm |
Overall Diameter | 4.3 mm x 7 mm |
Product Type | Fire Control Cable |
Please Note | Printing “LV” |
Sheath Material | 4V-75 PVC |
Sheath Thickness | 0.8 mm |
Sheath Colour | Red/White Trace |
Standards | AS/NZS 3808 |
Stranding | 2x7/0.5 mm |
Voltage | 250 Volt |
Conductor Size | 1.5 mm |
Number of Cores | 2 Core |
