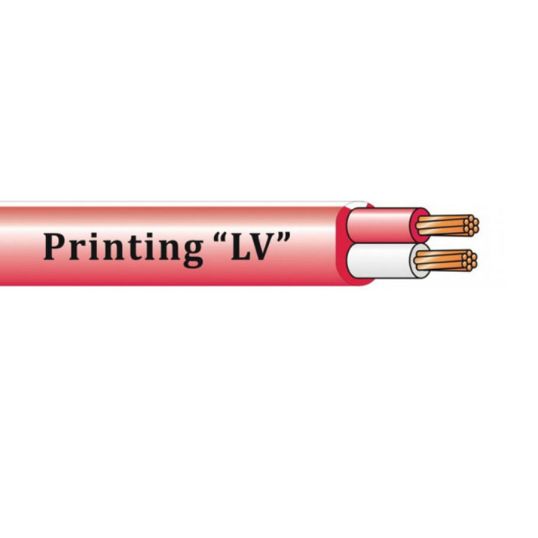

Electra 0.88mm Flat TPS Cable Fire Control Light Duty Red/White 100mtr

Description

Flat TPS Cable Fire Control Light Duty, 0.88 mm, Annealed Copper, 250 Volt, 10 Amp, 2 Core, 2x7/0.42 mm Strands, 4.3 mm x 6.4 mm Overall Diameter, 100 mtr Length, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, DC: 21.2 Ohm/km Conductor Resistance, Red/White Core, V-75 PVC Insulation, V-75 PVC Sheath, Red/White Trace Sheath, AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808, Printing LV

Key Specifications

SKU	ELCXFC7402-LD-100
Brand	Electra
Product Type	Fire Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XFC7402-LD-100
Conductor Resistance	DC: 21.2 Ohm/km
Conductor Size	0.88 mm
Conductor Type	Annealed Copper
Core Colours	Red/White
Current	10 Amp
Insulation Material	V-75 PVC
Insulation Thickness	0.6 mm
Number of Cores	2 Core
Overall Diameter	4.3 mm x 6.4 mm
Please Note	Printing LV
Sheath Colour	Red/White Trace
Sheath Material	V-75 PVC
Sheath Thickness	0.9 mm
Standards	AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808
Stranding	2x7/0.42 mm
Voltage	250 Volt
