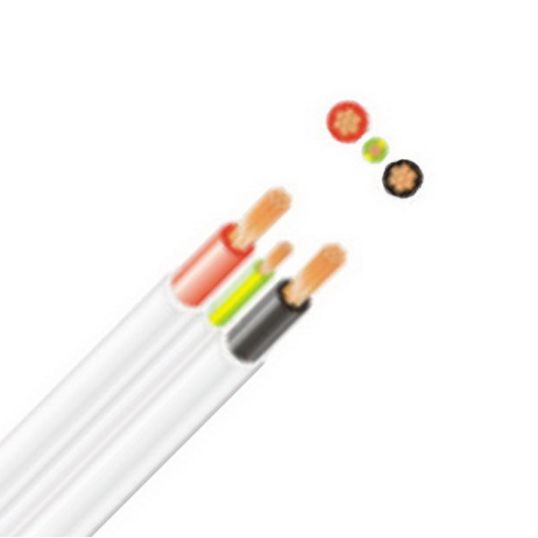

Electra 16mm Flat TPS Cable Black/Blue/Red/White/Green/Yellow 1mtr

Description

Flat TPS Cable, 16 mm, Stranded Annealed Copper, 450-750 Volt, 2 Core + Earth, 21.8 mm x 9.9 mm Overall Diameter, 16 mm Earth Conductor, 1 mtr Length, 95 mm Bend Radius, 1 mm Insulation Thickness, 1.3 mm Sheath Thickness, DC: 1.15 Ohm/km AC: 1.4 Ohm/km Conductor Resistance, Red/White/Blue/Black/Green/Yellow Core, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 75 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSRF3160V
Brand	Electra
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRF3160V
Bend Radius	95 mm
Conductor Type	Stranded Annealed Copper
Conductor Resistance	DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Core Colours	Black/Blue/Red/White/Green/Yellow
Insulation Material	V-90 PVC
Insulation Thickness	1 mm
Overall Diameter	21.8 mm x 9.9 mm
Sheath Material	3V-90 PVC
Sheath Thickness	1.3 mm
Sheath Colour	White
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Temperature	75 deg C
Voltage	450-750 Volt
Conductor Size	16 mm
Number of Cores	2 Core + Earth
Earth Conductor Size	16 mm
