Std Pack Size
1
OUR P/N:
ELCSRF2025V-BLK

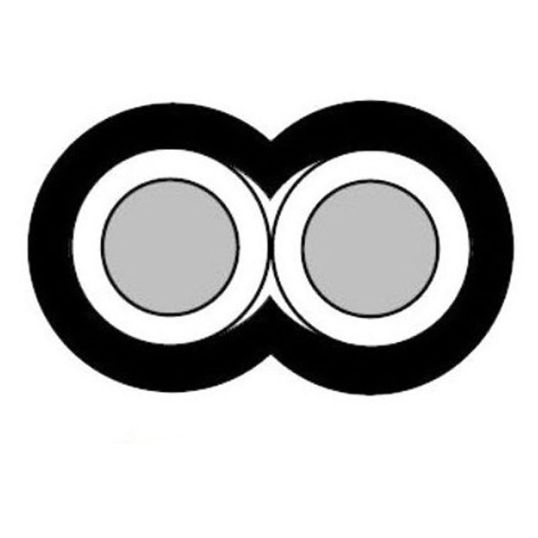

Flat Twin Cable, 2 Core, 2.5 mm, Plain Annealed Copper, 450/750 Volt, 2x7/0.67 mm Strands, 9 mm x 5.6 mm Overall Diameter, 40 mm Bend Radius, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 7.41 Ohm/km, AC: 9.01 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red Black Cores, Black Sheath, 75 deg C, AS/NZS 5000.2
Additional Information
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SRF2025V-BLK |
| Bend Radius | 40 mm |
| Conductor Type | Plain Annealed Copper |
| Conductor Resistance | DC: 7.41 Ohm/km AC: 9.01 Ohm/km |
| Core Colours | Red/Black |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.7 mm |
| Overall Diameter | 9 mm x 5.6 mm |
| Product Type | Cables TPS SDI & Flat |
| Sheath Material | 3V-90 PVC |
| Sheath Thickness | 1 mm |
| Sheath Colour | Black |
| Standards | AS/NZS 5000.2 |
| Stranding | 2x7/0.67 mm |
| Temperature | 75 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 2.5 mm |
| Number of Cores | 2 Core |
