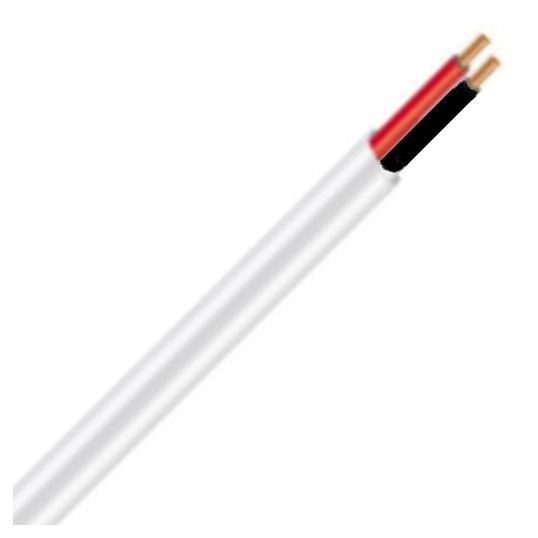

Electra 1.5mm Flat TPS Cable Black/Red 100mtr

Description

Flat TPS Cable, 1.5 mm, Annealed Copper, 450-750 Volt, 2 Core, 2x7/0.5 mm Strands, 7.2 mm x 4.6 mm Overall Diameter, 100 mtr Length, 30 mm Bend Radius, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, DC: 13.6 Ohm/km AC: 16.5 Ohm/km Conductor Resistance, Red/Black Core, V-90 PVC Insulation, 3V-90 PVC Easytear Sheath, White Sheath, 75 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSRF2015V
Brand	Electra
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRF2015V
Bend Radius	30 mm
Conductor Resistance	DC: 13.6 Ohm/km AC: 16.5 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red
Insulation Material	V-90 PVC
Insulation Thickness	0.6 mm
Number of Cores	2 Core
Overall Diameter	7.2 mm x 4.6 mm
Sheath Colour	White
Sheath Material	3V-90 PVC Easytear
Sheath Thickness	0.9 mm
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Stranding	2x7/0.5 mm
Temperature	75 deg C
Voltage	450-750 Volt
