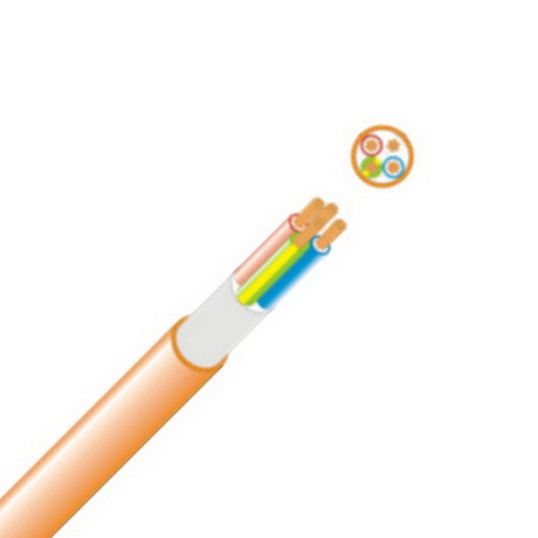

Electra 1.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr

Description

Circular Cable, Unarmoured, 1.5mm, Annealed Copper, 450-750 Volt, 3 Core + Earth, 3x7/0.5mm + 7/0.5mm Earth Strands, 9.2mm Overall Diameter, 1.5mm Earth Conductor, 100 mtr Length, 0.6mm Insulation Thickness, 1.2mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	ELCSRCV3015E
Brand	Electra
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRCV3015E
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Earth Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.6 mm
Number of Cores	3 Core + Earth
Overall Diameter	9.2 mm
Sheath Colour	Orange
Sheath Thickness	1.2 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Stranding	3x7/0.5 mm + 7/0.5 mm Earth
Temperature	90 deg C
Voltage	450-750 Volt
