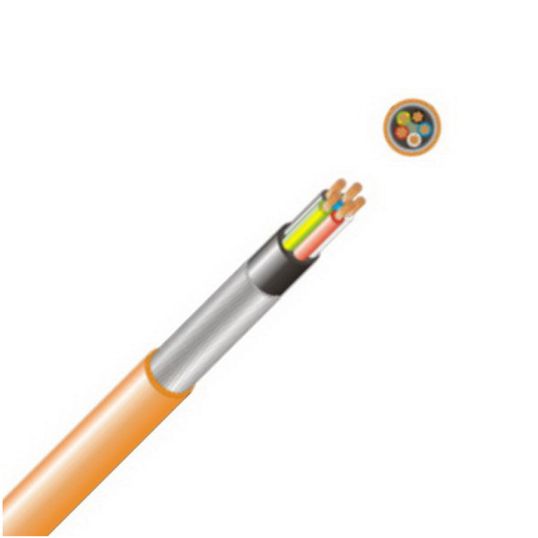

Electra 1.5 mm Orange Circular Cable Armoured V-90 PVC/Galvanised Steel Wire/5V-90 PVC 1mtr
Loading...
Description
Circular Cable, Armoured, 1.5 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 4x7/0.5 mm Strands, 15.7 mm Overall Diameter, 1.5 mm Earth Conductor, 1 mtr Length, 0.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, Galvanised Steel Wire Armour, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Key Specifications
| SKU |
ELCSRC4015ESWA
|
|---|---|
| Brand |
Electra
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SRC4015ESWA |
| Armour Material | Galvanised Steel Wire |
| Conductor Size | 1.5 mm |
| Core Colours | Black/Red/Green/Yellow |
| Conductor Type | Annealed Copper |
| Earth Conductor Size | 1.5 mm |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 15.7 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |
| Stranding | 4x7/0.5 mm |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
