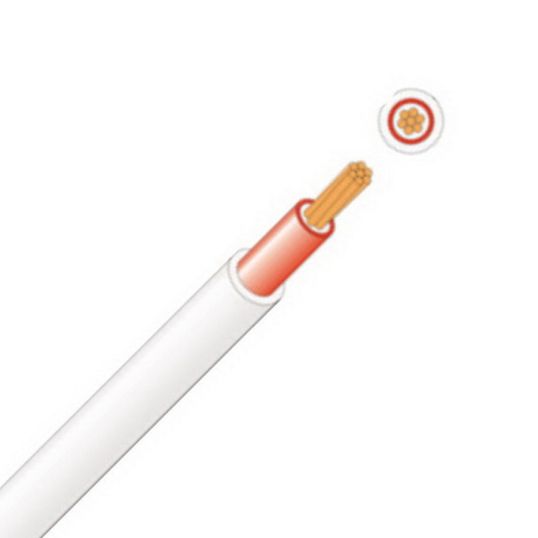

Electra 4mm SDI Cable Red 100mtr

Description

SDI Cable, 4 mm, Annealed Copper, 450-750 Volt, 1 Core, 1x7/0.85 mm Strands, 6.2 mm Overall Diameter, 100 mtr Length, 25 mm Bend Radius, 0.8 mm Insulation Thickness, 0.9 mm Sheath Thickness, DC: 4.61 Ohm/km AC: 5.61 Ohm/km Conductor Resistance, Red Core, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 90 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSDI1040V-RD/WH
Brand	Electra
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SDI1040V-RD/WH
Bend Radius	25 mm
Conductor Type	Annealed Copper
Conductor Resistance	DC: 4.61 Ohm/km AC: 5.61 Ohm/km
Core Colours	Red
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Overall Diameter	6.2 mm
Sheath Material	3V-90 PVC
Sheath Thickness	0.9 mm
Sheath Colour	White
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Stranding	1x7/0.85 mm
Temperature	90 deg C
Voltage	450-750 Volt
Conductor Size	4 mm
Number of Cores	1 Core
