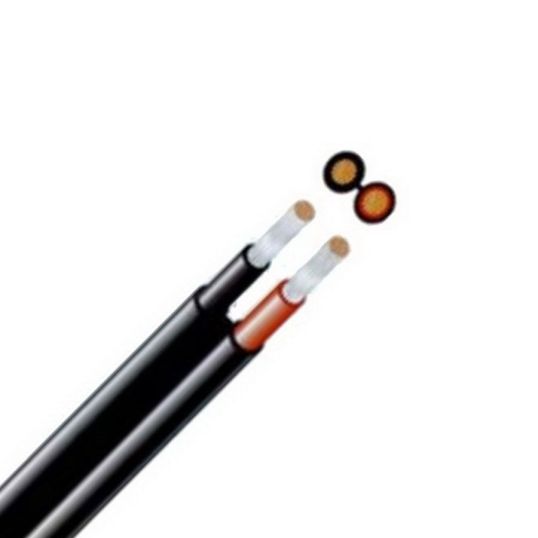

Electra Solar Cable 2 Core 6mm 0.6/1kV XLPE/PVC Black
Loading...
Description
Solar Cable, 0.6-1 kV, 6 mm, 2 Core, 84/0.3 mm Strands, 3.39 mm Overall Diameter, 1 mm Insulation Thickness, 0.8 mm Sheath Thickness, Red/Black Core, Electron Beam XLPE Insulation, UV Resistant XLPE Sheath, Black Sheath, 75 deg C, AS/NZS 5000.2, AS/NZS 5033.2012 PV1-F of TUV 2 Pfg 1169/08.2007
Key Specifications
| SKU |
ELCPV84032-100BLK
|
|---|---|
| Brand |
Electra
|
| Product Type |
Solar Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | PV84032-100BLK |
| Conductor Size | 6 mm |
| Core Colours | Black/Red |
| Insulation Material | Electron Beam XLPE |
| Insulation Thickness | 1 mm |
| Number of Cores | 2 Core |
| Overall Diameter | 3.39 mm |
| Sheath Colour | Black |
| Sheath Material | UV Resistant XLPE |
| Sheath Thickness | 0.8 mm |
| Standards | AS/NZS 5000.2 AS/NZS 5033.2012 PV1-F of TUV 2 Pfg 1169/08.2007 |
| Stranding | 84/0.3 mm |
| Temperature | 75 deg C |
| Voltage | 0.6-1 kV |
