Electra Circular Power Cable XLPE 1 Core 70mm 0.6/1kV Plain Annealed Copper XLPE Orange
Loading...
Description

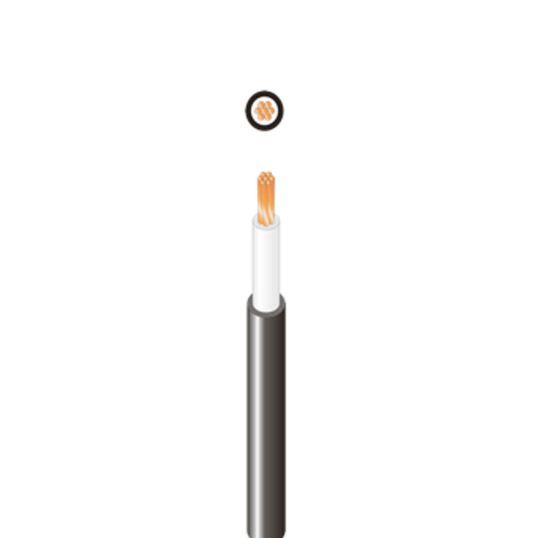

Circular XLPE Cable, 70 mm, Class 6 Annealed Copper, 0.6-1 kV, 1 Core, 352/0.49 mm Strands, 16.7 mm Overall Diameter, 250 mm Bend Radius, 1.1 mm Insulation Thickness, 1.5 mm Sheath Thickness, X-90 XLPE Insulation, Natural Insulation, TP-90 XLPE Sheath, Orange Sheath, AS/NZS 3008.1 AS/NZS 5000.1 AS/NZS 1125
Key Specifications
| SKU |
ELCFXLPE1700
|
|---|---|
| Brand |
Electra
|
| Product Type |
Cables Circular
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FXLPE1700 |
| Bend Radius | 250 mm |
| Conductor Size | 70 mm |
| Conductor Type | Class 6 Annealed Copper |
| Insulation Colour | Natural |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.1 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 16.7 mm |
| Sheath Colour | Orange |
| Sheath Material | TP-90 XLPE |
| Sheath Thickness | 1.5 mm |
| Standards | AS/NZS 3008.1 AS/NZS 5000.1 AS/NZS 1125 |
| Stranding | 352/0.49 mm |
| Voltage | 0.6-1 kV |
