Std Pack Size
500
OUR P/N:
ELCFC7502HD-500

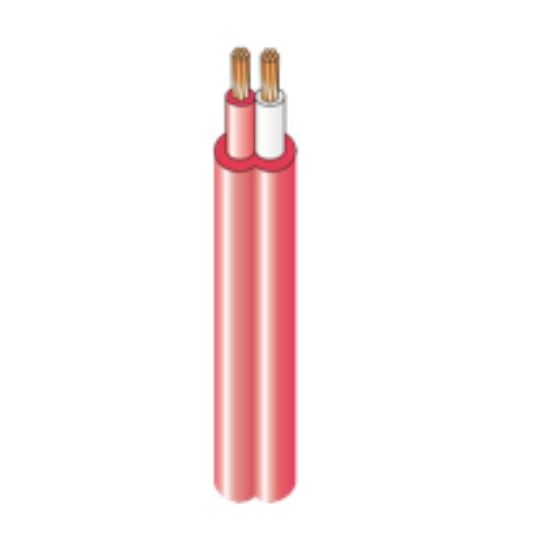

Flat Twin Fire Control Cable, 2 Core, Heavy Duty, 1.5 mm, Plain Annealed Copper, 0.6/1 kV, 15 Amp, 2x7/0.5 mm Strands, 6.7 mm x 9.8 mm Overall Diameter, 0.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, Conductor Resistance: 13.6 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red White Cores, Red Sheath, AS/NZS 1125, AS/NZS 3808
Additional Information
| Brand | Electra |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FC7502HD-500 |
| Conductor Type | Plain Annealed Copper |
| Conductor Resistance | 13.6 Ohm/km |
| Core Colours | Red/White |
| Current | 15 Amp |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Overall Diameter | 6.7 mm x 9.8 mm |
| Product Type | Fire Control Cable |
| Sheath Material | 3V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Sheath Colour | Red |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Stranding | 2x7/0.5 mm |
| Voltage | 0.6-1 kV |
| Conductor Size | 1.5 mm |
| Number of Cores | 2 Core |
