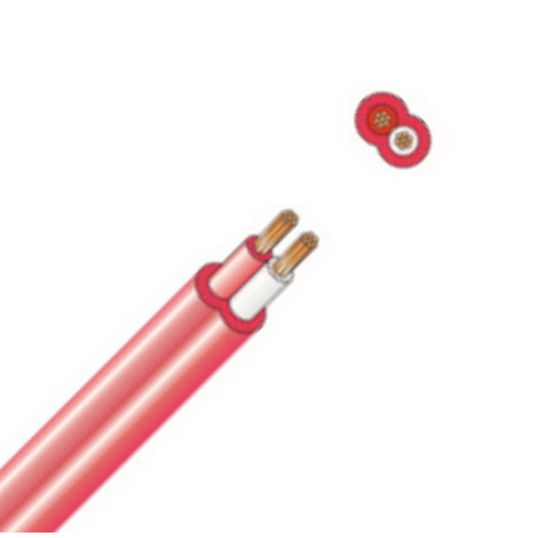

Electra 0.75mm Flat TPS Cable Fire Control Light Duty Red/White 1mtr

Description

Flat TPS Cable Fire Control Light Duty, 0.75 mm, Annealed Copper, 250 Volt, 10 Amp, 2 Core, 2x7/0.4 mm Strands, 4.1 mm x 6.4 mm Overall Diameter, 1 mtr Length, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, 21.2 Ohm/km Conductor Resistance, Red/White Core, V-75 PVC Insulation, V-75 PVC Sheath, Red Sheath, AS/NZS 3013:2005(WSX1) AS/NZS 1125 IEC 60228 AS/NZS 3808

Key Specifications

SKU	ELCFC7402LD
Brand	Electra
Product Type	Fire Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FC7402LD
Conductor Type	Annealed Copper
Conductor Resistance	21.2 Ohm/km
Core Colours	Red/White
Current	10 Amp
Insulation Material	V-75 PVC
Insulation Thickness	0.6 mm
Overall Diameter	4.1 mm x 6.4 mm
Sheath Material	V-75 PVC
Sheath Thickness	0.9 mm
Sheath Colour	Red
Standards	AS/NZS 3013:2005(WSX1) AS/NZS 1125 IEC 60228 AS/NZS 3808
Stranding	2x7/0.4 mm
Voltage	250 Volt
Conductor Size	0.75 mm
Number of Cores	2 Core
