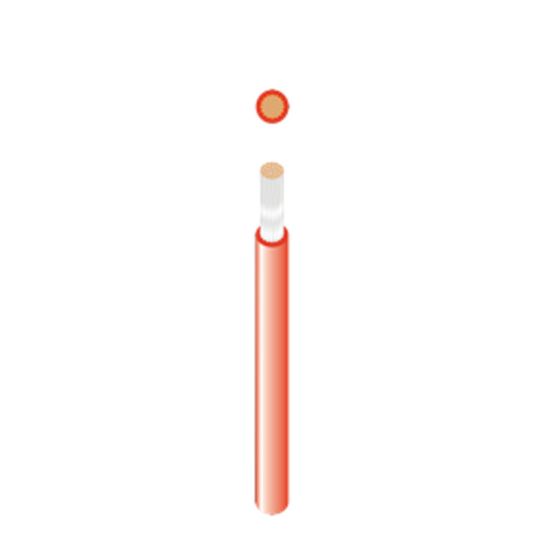

Electra 10mm Red Flexible Wire Heavy Duty V90HT PVC

$Electra\Electra_F1xxxVT_Flex_Cable.jpg$

Description

Flexible Wire, Heavy Duty, 10 mm, Tinned Copper, 0.6-1 kV, 65 Amp, 1 Core, 80/0.4 mm Strands, 6.1 mm Overall Diameter, 1 mm Insulation Thickness, 2.02 Ohm/km Conductor Resistance, V-90HT PVC Insulation, Red Insulation, Unsheathed, 105 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 IEC 6231.1

Key Specifications

SKU	ELCF1100VT-RED
Brand	Electra

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121500
UOM	MTR
Vendor Product	F1100VT-RED
Conductor Resistance	2.02 Ohm/km
Conductor Size	10 mm
Current	65 Amp
Conductor Type	Tinned Copper
Insulation Colour	Red
Insulation Material	V-90HT PVC
Insulation Thickness	1 mm
Number of Cores	1 Core
Overall Diameter	6.1 mm
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 IEC 6231.1
Stranding	80/0.4 mm
Temperature	105 deg C
Voltage	0.6-1 kV
