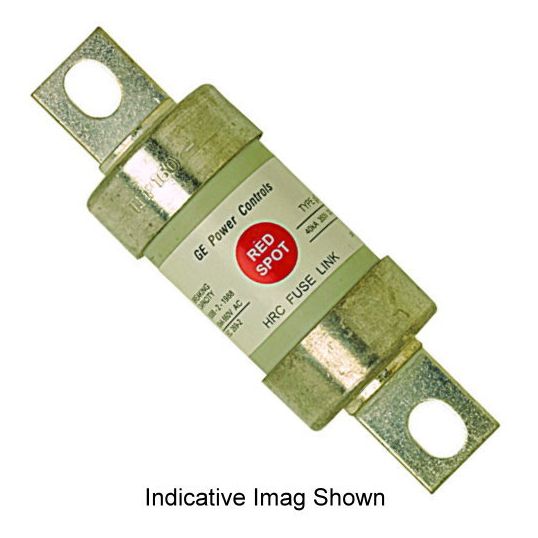

IPD Fuse Link HRC 2 Hole Fixing Bolt In Centre 125 Amp 660VAC 80 kA Class gG BS88 Type B2
Loading...
Description
HRC Fuse Link, 660 Volt AC, 125 Amp, 80 kA Interrupt Capacity, Class gG, 111 mm Fixing Centres, Bolt In Centre, 33.7 mm Diameter x 136.5 mm Length, BS88 Type B2
Key Specifications
| Barcode (EAN-13) |
5050096002827
|
|---|---|
| SKU |
EEFTF125
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TF125 |
| Fixing Centres | 111 mm |
| Dimensions | 33.7 mm Diameter x 136.5 mm Length |
| Current | 125 Amp |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B2 |
| Tag Type | Bolt In Centre |
| Utilisation Category | Class gG |
| Voltage | 660 Volt AC |
Downloads
