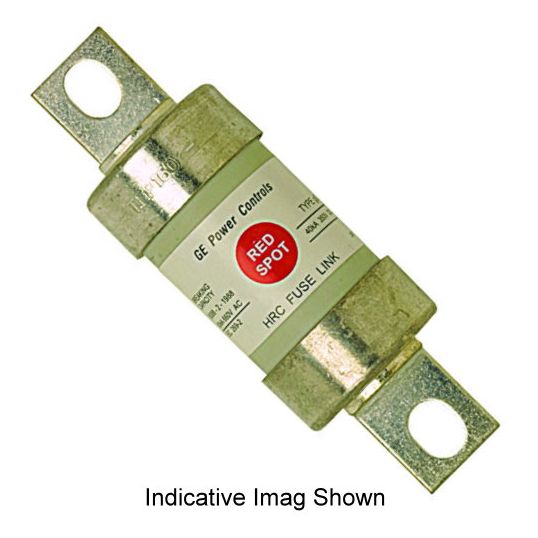

IPD Fuse Link HRC 2 Hole Fixing Bolt In Offset 100 Amp 660VAC 80 kA Class gG BS88 Type A4
Loading...
Description
HRC Fuse Link, 660 Volt AC, 100 Amp, 80 kA Interrupt Capacity, Class gG, 93.7 mm Fixing Centres, Bolt In Offset, 26.2 mm Diameter x 111 mm Length, BS88 Type A4
Key Specifications
| Barcode (EAN-13) |
5050096002735
|
|---|---|
| SKU |
EEFTCP100
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TCP100 |
| Current | 100 Amp |
| Dimensions | 26.2 mm Diameter x 111 mm Length |
| Fixing Centres | 93.7 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type A4 |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class gG |
| Voltage | 660 Volt AC |
