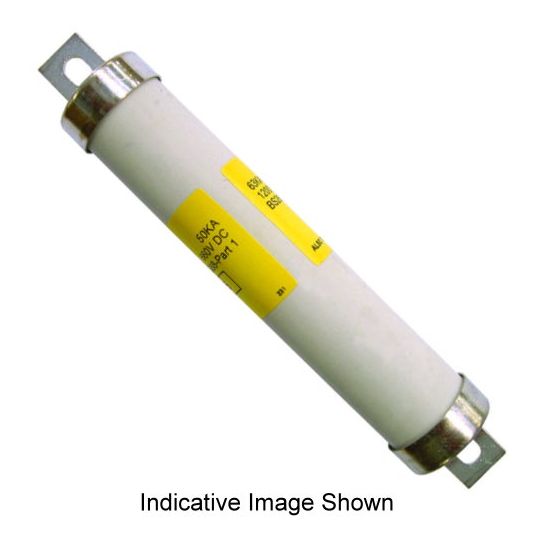

IPD Fuse Link HRC Bolt In Offset 6 Amp 1200VAC 63 kA Class gG
Loading...
Description
HRC Fuse Link, 1200 Volt AC, 6 Amp, 63 kA Interrupt Capacity, Class gG, 124 mm Fixing Centres, Bolt In Offset, 22.2 mm Diameter x 139 mm Length
Key Specifications
| Barcode (EAN-13) |
5050096020210
|
|---|---|
| SKU |
EEFTAC6
|
| Brand |
IPD
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TAC6 |
| Current | 6 Amp |
| Current | 6 Amp |
| Dimensions | 22.2 mm Diameter x 139 mm Length |
| Fixing Centres | 124 mm |
| Interrupt Capacity | 63 kA |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class gG |
| Voltage | 1200 Volt AC |
