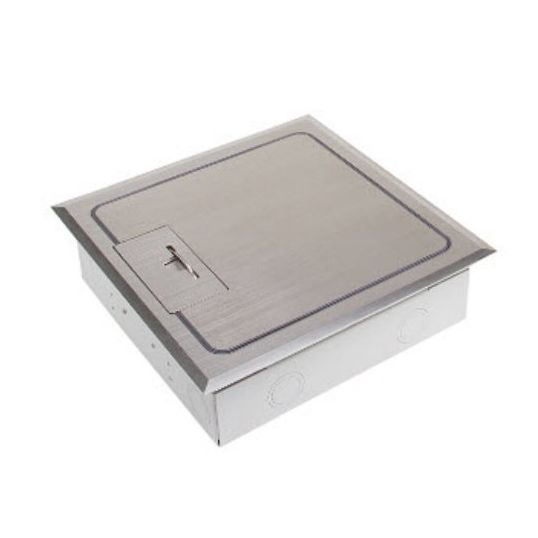

ECD Flush Floor Box Provision For 4xGPO 6xData L240mm W240mm D70mm 304 Stainless Steel

Description

Floor Box Flush Mount, Provision For 4x GPO 6x Data, 4 Gang, For Use With CAT6A and CAT7 Data Cabling, Stainless Steel, 240 mm Length, 240 mm Width, 70 mm Depth

Key Specifications

SKU	ECDFB4SF70
Brand	ECD
Product Type	Floor Box

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flush Protector Series Stainless Steel Lid and Frame with No. 4 Linished finish Cable Shield Frame assembly to prevent cables being cut (Patent Pending) Soft close lid to stop lid from slamming shut Cable retainer for easy cable management Robust and large capacity cable exit flap with retractable lifting handle Capacity for 4 x single auto switched power outlets(supplied) and 6 x data bezel mounts (supplied) Suitable for category 6A and 7A data cabling with generous bend radius capacity Suitable for Audio / Video outlets including VGA, HDMI, USB, etc Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range Supplied with temporary construction lid
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	FB4SF70
Depth	70 mm
For Use With	CAT6A and CAT7 Data Cabling
Material	Stainless Steel
Number of Gangs	4
Service Facilities	Provision For 4x GPO 6x Data
Width	240 mm
