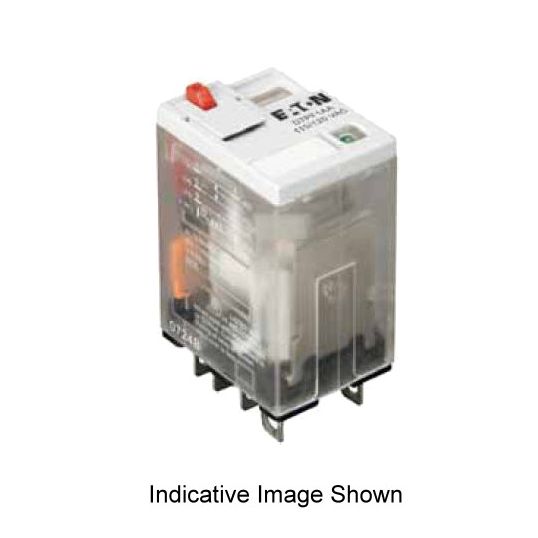

Eaton General Purpose Relay Panel/DIN Rail/Flange/Plug-In Mount 4P 4PDT 12A 12VDC 14 Pin Flat

$Eaton\Eaton_D7_Relays.jpg$

Description

General Purpose Relay, 300 Volt, 12 Volt DC, 12 Amp, 1.5 Watt, 14 Pin Flat, 4 Pole, 4PDT/4CO, 96 Ohm, Operating Time: 20 ms, 200000 Cycles, IP40, Panel/DIN Rail/Flange/Plug-In Mount, Silver Alloy, -40 to 55 deg C, 40.6 mm Width, 27.9 mm Depth

Key Specifications

SKU	EATD7PF4AR1
Brand	Eaton
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Arc barrier equipped relay with high dielectric strength
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	D7PF4AR1
Contact Configuration	4PDT/4 Changeover
IP Rating	IP40
Depth	27.9 mm
Contact Material	Silver Alloy
Current	12 Amp
Mounting Method	Panel/DIN Rail/Flange/Plug-In
Number Of Poles	4 Pole
Operating Coil Voltage	12 Volt DC
Operating Cycles	200000 Cycles
Operating Time	20 ms
Resistance	96 Ohm
Pin Configuration	14 Pin Flat
Power Rating	1.5 Watt
Temperature	-40 to 55 deg C
Voltage	300 Volt
Width	40.6 mm
