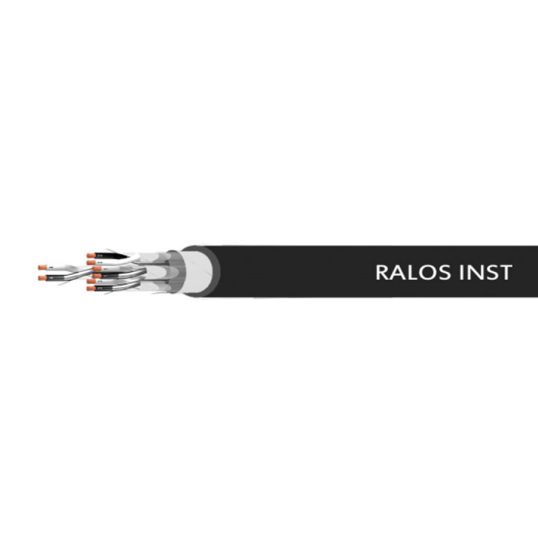

DKSH 1.5mm 4 Pair Instrumentation Cable Unarmoured High Temperature Individual & Overall Screened

Description

Instrumentation Cable, Unarmoured, High Temperature, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 4 Pair, 7/0.5 mm Strands, Individual & Overall Screened Screen, 12.7 mm Overall Diameter, 63.5 mm Bend Radius, 0.4 mm Insulation Thickness, 1.1 mm Sheath Thickness, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -20 to 90 deg C, AS/NZS 3808

Key Specifications

SKU	DKSINS4P1.5ESCSBK
Brand	DKSH
Product Type	Instrumentation Cable Unarmoured High Temperature

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	INS4P1.5ESCSBK
Bend Radius	63.5 mm
Core Colours	Black/White Numerals
Conductor Type	Class 2 Annealed Copper
Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Number of Pairs	4 Pair
Overall Diameter	12.7 mm
Screen Format	Individual & Overall Screened
Sheath Colour	Black
Screen Material	Aluminium/Polyester Tape
Sheath Material	5V-90 PVC
Sheath Thickness	1.1 mm
Stranding	7/0.5 mm
Temperature	-20 to 90 deg C
Standards	AS/NZS 3808
Voltage	110 Volt AC/150 Volt DC
