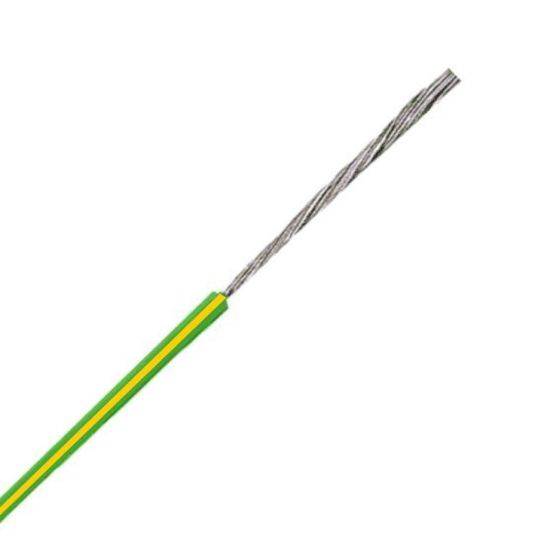

Tele Fonika Flexible Wire Single Insulated 1 Core 50mm 0.6/1kV Tinned Copper X-HF-110 Green/Yellow
Loading...
Description
Flexible Cable, 50 mm, Class 6 Copper, 0.6-1 kV, 1 Core, 10.6 mm Overall Diameter, Static 42.4 mm Bend Radius, X-HF-110 Insulation, Green/Yellow Insulation, Unsheathed Sheath, -40 to 110 deg C
Key Specifications
| SKU |
DKSHF1X50GN/YW
|
|---|---|
| Brand |
Tele Fonika Kables
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | HF1X50GN/YW |
| Conductor Size | 50 mm |
| Bend Radius | Static 42.4 mm |
| Conductor Type | Class 6 Copper |
| Insulation Material | X-HF-110 |
| Insulation Colour | Green/Yellow |
| Number of Cores | 1 Core |
| Overall Diameter | 10.6 mm |
| Sheath Material | Unsheathed |
| Temperature | -40 to 110 deg C |
| Voltage | 0.6-1 kV |
