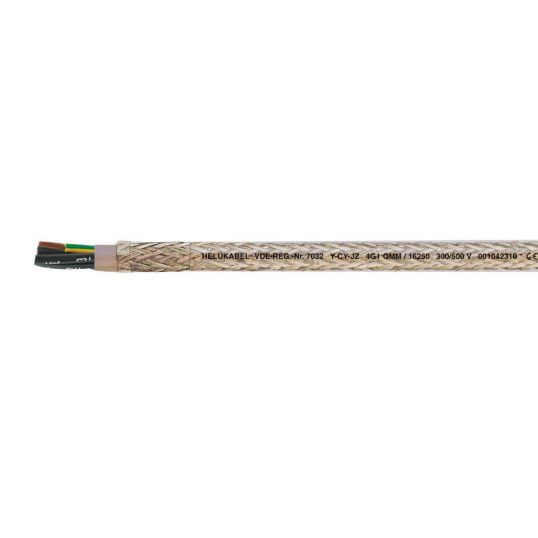

Helukabel Y-CY-JZ Flexible Control Cable VSD EMC Screened 11 Core & Earth 0.5mm 300/500V Copper PVC/TCBS/PVC Clear

Description

Flexible Control Cable, VSD EMC Screened, 11 Core & Earth, 0.5 mm, Stranded Bare Copper, 300/500 Volt, 11.5 mm Overall Diameter, Bend Radius: Static - 57.5 mm Flexible - 115 mm, Conductor Resistance: 250 Ohm/km, Insulation Resistance: 20 Mohm/km, 85% Screen Coverage, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Black with White Numbered Cores, Clear Sheath, Static - -40 to 80 deg C Flexible - -15 to 80 deg C, VDE 0285-525-2-51, EN 50525-2-51

Key Specifications

SKU	DKSCC12G0.5CY
Brand	Helukabel
Product Type	Flexible Control Cable VSD EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CC12G0.5CY
Bend Radius	Static: 57.5 mm - Flexible: 115 mm
Conductor Resistance	250 Ohm/km
Conductor Size	0.5 mm
Conductor Type	Bare Copper
Core Colours	Black/White Numerals
Insulation Material	PVC
Insulation Resistance	20 Mohm/km
Number of Cores	11 Core + Earth
Overall Diameter	11.5 mm
Screen Coverage	85%
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Standards	VDE 0285-525-2-51 EN 50525-2-51
Temperature	Static: -40 to 80 deg C Flexible: -15 to 80 deg C
Voltage	300-500 Volt
