Crouse Hinds Metal Cable Gland Armoured General Purpose 25-33.5mm M32 IP66/67

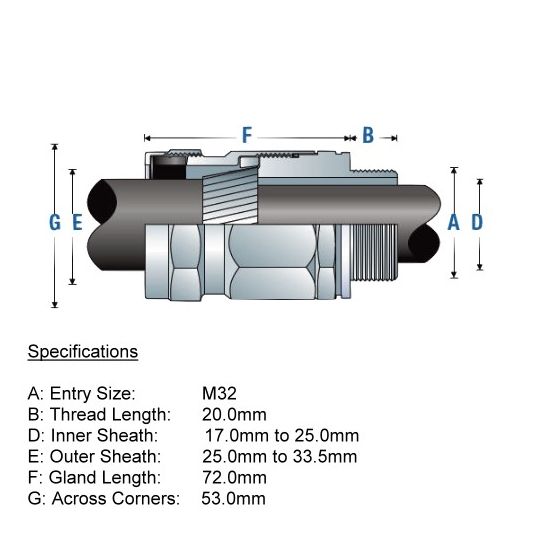

$Crouse_Hinds\Crouse_Hinds_TWA1M34.jpg$

Description

Metal Cable Gland, Armoured, General Purpose, M32, 20 mm Thread Length, 25 mm Min. Sheath OD, 33.5 mm Max. Sheath OD, 25 mm Max. Bedding OD, 1.6 mm Min. Armour Wire, 2 mm Max. Armour Wire, 47.2 mm Width Across Flats, 53 mm Width Across Corners, IP66/67, Brass Body, Nickel Plated Finish

Key Specifications

Barcode (EAN-13)	9323952097104
SKU	CRUTWA3M34
Brand	Crouse Hinds
Range Name	Terminator TWA
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Armour clamping and bonding for steel wire armoured cable Forms weatherproof seal on outer sheath of cable
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	TWA3M34
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/67
Max. Armour Wire	2 mm
Max. Sheath OD	33.5 mm
Max. Bedding OD	25 mm
Min. Armour Wire	1.6 mm
Min. Sheath OD	25 mm
Thread Length	20 mm
Width Across Corners	53 mm
Thread Size	M32
Width Across Flats	47.2 mm
