CMI 16 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/5V-90 PVC 1mtr
Loading...
Description

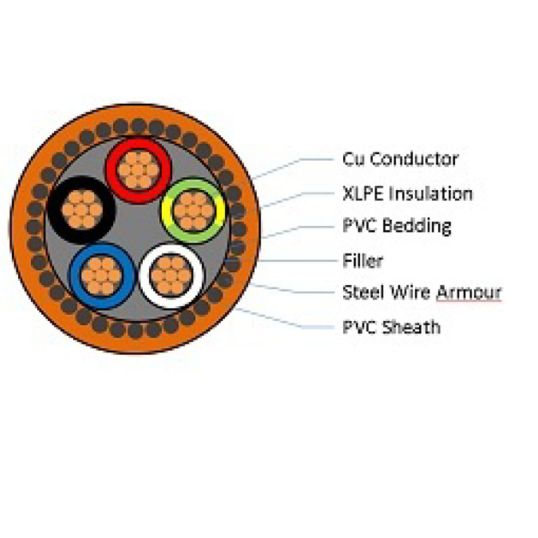

Circular Cable, Armoured, 16 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 25.5 mm Overall Diameter, 18.7 mm Bedding Diameter, 21.9 mm Diameter Over Armour, 6 mm Earth Conductor, 1 mtr Length, 0.8 mm Insulation Thickness, Steel Wire Armour, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, AS/NZS 5000.1
Key Specifications
| SKU |
CMISOX7170C4CE
|
|---|---|
| Brand |
CMI
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SOX7170C4CE |
| Armour Material | Steel Wire |
| Bedding Diameter | 18.7 mm |
| Conductor Type | Annealed Copper |
| Conductor Size | 16 mm |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Diameter Over Armour | 21.9 mm |
| Earth Conductor Size | 6 mm |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 0.8 mm |
| Nominal Diameter | 5.1 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 25.5 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 5000.1 |
| Stranding | 7/1.7 mm |
| Voltage | 0.6-1 kV |
