CMI 120mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr

Description

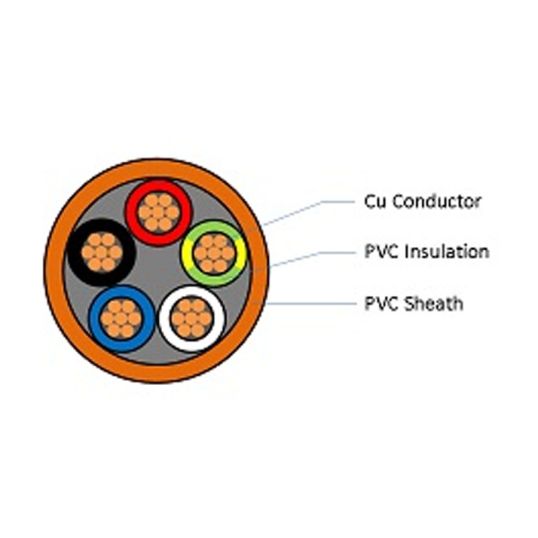

Circular Cable Unarmoured, 120mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 37/2.03mm Strands, 14.21mm Nominal Diameter, 44.2mm Overall Diameter, 35mm Earth Conductor, 1 mtr Length, 1.2mm Insulation Thickness, 2.4mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	CMIOX37203C4CE
Brand	CMI
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	OX37203C4CE
Conductor Size	120 mm
Conductor Type	Annealed Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Insulation Thickness	1.2 mm
Insulation Material	X-90 XLPE
Earth Conductor Size	35 mm
Nominal Diameter	14.21 mm
Number of Cores	4 Core + Earth
Overall Diameter	44.2 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	2.4 mm
Stranding	37/2.03 mm
Standards	AS/NZS 1125 AS/NZS 3808
Voltage	0.6-1 kV
