CMI 25mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
Loading...
Description

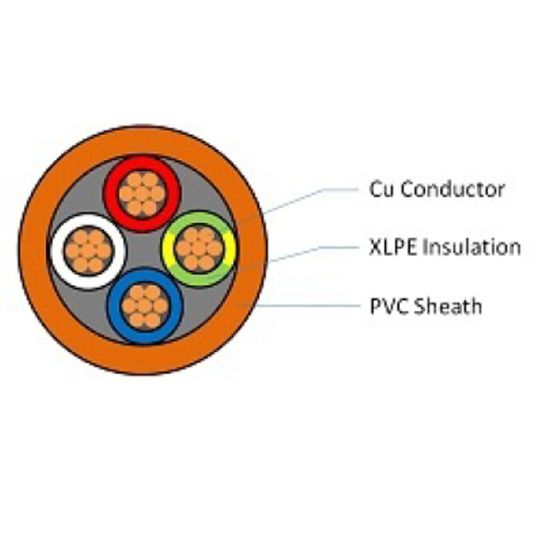

Circular Power Cable, Unarmoured, 3 Core & Earth, 25mm, Plain Annealed Copper, 0.6/1 kV, 19/1.35mm Strands, 6.75mm Nominal Diameter, 6mm Earth Conductor, 21.2mm Overall Diameter, 0.9mm Insulation Thickness, 1.8mm Sheath Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1
Key Specifications
| SKU |
CMIOX19135C3CE
|
|---|---|
| Brand |
CMI
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | OX19135C3CE |
| Conductor Size | 25 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 0.9 mm |
| Insulation Material | XLPE |
| Earth Conductor Size | 6 mm |
| Nominal Diameter | 6.75 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 21.2 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Sheath Thickness | 1.8 mm |
| Stranding | 19/1.35 mm |
| Standards | AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
