CMI 6mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 1mtr
Loading...
Description

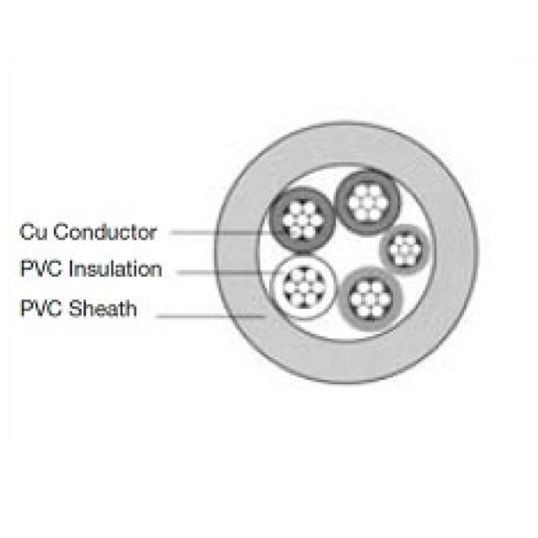

Circular Cable Unarmoured, 6mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 7/1.04mm Strands, 3.1mm Nominal Diameter, 16.8mm Overall Diameter, 2.5mm Earth Conductor, 1 mtr Length, 1mm Insulation Thickness, 1.8mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, AS/NZS 1125 AS/NZS 3808
Key Specifications
| SKU |
CMIOC7104C4CE
|
|---|---|
| Brand |
CMI
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | OC7104C4CE |
| Conductor Size | 6 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Thickness | 1 mm |
| Insulation Material | V-90 PVC |
| Earth Conductor Size | 2.5 mm |
| Nominal Diameter | 3.1 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 16.8 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Stranding | 7/1.04 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Voltage | 0.6-1 kV |
