CMI 1.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 1mtr
Loading...
Description

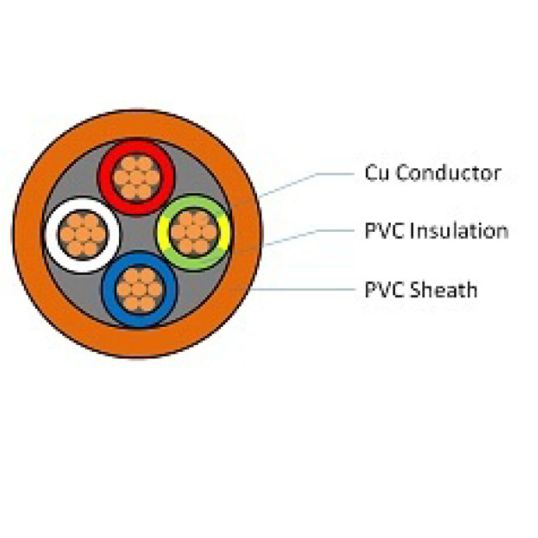

Circular Cable Unarmoured, 1.5mm, Annealed Copper, 0.6-1 kV, 3 Core + Earth, 7/0.5mm Strands, 1.5mm Nominal Diameter, 11.3mm Overall Diameter, 1.5mm Earth Conductor, 1 mtr Length, 0.8mm Insulation Thickness, 1.8mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, AS/NZS 1125 AS/NZS 3808
Key Specifications
| SKU |
CMIOC7050C3CE
|
|---|---|
| Brand |
CMI
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | OC7050C3CE |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 0.8 mm |
| Insulation Material | V-90 PVC |
| Earth Conductor Size | 1.5 mm |
| Nominal Diameter | 1.5 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 11.3 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Stranding | 7/0.5 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Voltage | 0.6-1 kV |
