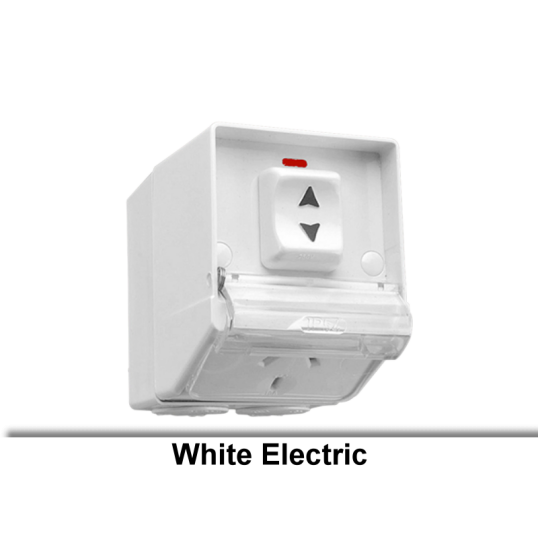

Clipsal GPO Switched Outlet Weatherproof Surface Mount Standard 1 Gang 10A 250V IP54 Horizontal White Electric

$ClipsalNew\A0000867-WE.png$

Description

GPO Switched Outlet Weatherproof, Large, 1 Phase, 10 Amp, 250 Volt, 50 Hz, 1 Gang, 3 Pin, Sliding ON/OFF Button, White Electric, IP54, Surface Mount, Horizontal, Mounting Centres: 84 mm, Plastic, Screw Connection, Terminal Capacity: 4 x 2.5 mm, Conduit Entry: 2 x 20 mm Flash Out, 75 mm Height, 78 mm Width, 87 mm Depth

Key Specifications

Barcode (EAN-13)	9311554003357
SKU	CLIWSC228WE
Brand	Clipsal
Range Name	WeatherShield
Product Type	GPO Weatherproof

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suit 75 mm columns
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	WSC228-WE
Angle	Large
Colour	White
Conduit Entry	2 x 20 mm Flash Out
Connection Type	Screw
Control Type	Sliding ON/OFF Button
Current	10 Amp
Frequency	50 Hz
Height	75 mm
Depth	87 mm
IP Rating	IP54
Material	Plastic
Mounting Centres	84 mm
Mounting Method	Surface
Number Of Gangs	1 Gang
Orientation	Horizontal
Phase	1 Phase
Pin Configuration	3 Pin
Terminal Capacity	4 x 2.5 sq-mm
Voltage	250 Volt
Width	78 mm
