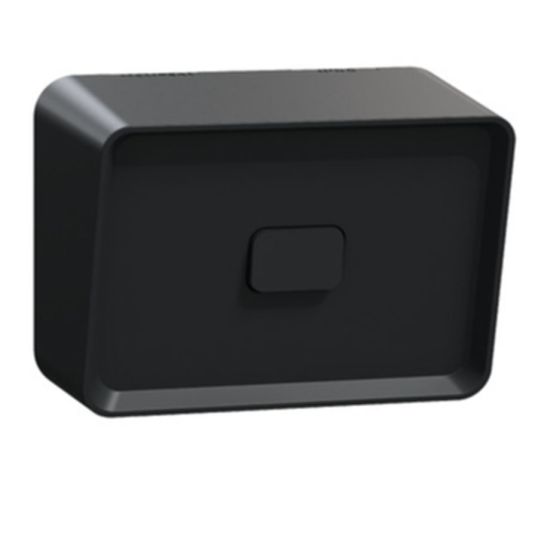

Clipsal Switch 1G 20A/16AX 250V 1/2 Way Horizontal Black

$Clipsal\Clipsal_O3041HA-BK.JPG$

Description

Give yourself the option of two-way switching with the Clipsal Iconic Outdoor 1 gang Switch, rated 20A/16AX, 250V. The switch has an IP56 rating to prevent dust and water ingress. The matt White finish is robust and designed for Australian summers and winters.

Key Specifications

Barcode (EAN-13)	9311554811143
SKU	CLIO3041HA-BK
Brand	Clipsal
Range Name	Iconic
Product Type	Switches Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The Iconic Outdoor range features an innovative design to ensure your outdoor switches and sockets are kept safe and secure Integrated shutters seal the socket apertures, preventing water ingress and ensuring an IP54 protection rating. The switches are rated IP56 Integrated seals fix onto conduits or cables at entry points, removing the need for additional sealants, and pre-drilled mounting holes are positioned outside of the waterproof area to prevent leaks
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	O3041HA-BK
Colour	Black
Current	20 Amp
Depth	70 mm
Finish	Matte
Frequency	50 Hz
Height	85 mm
IP Rating	IP56
Material	Polycarbonate/Thermoplastic Elastomer/ABS/Polyoxymethylene
Mounting Method	Horizontal/Screws/Wall
Number Of Switches	1 Switch
Switch Function	1/2 Way
Temperature	0 to 45 deg C
Terminal Capacity	4 x 1.5 mm/3 x 2.5 mm
Width	115.5 mm
