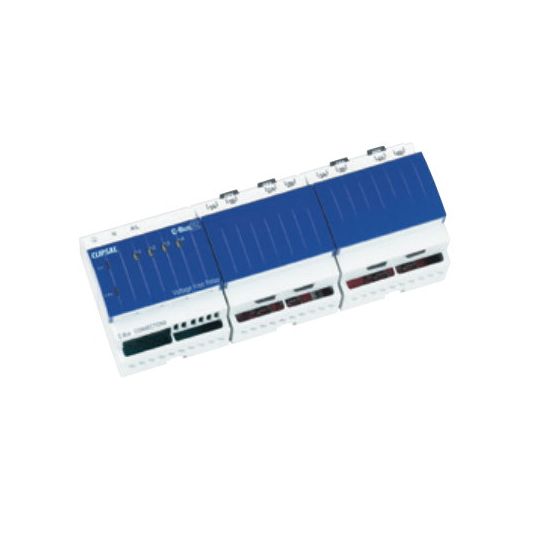

Clipsal C-Bus Relay Unit DIN Rail-Mount Voltage Free 4 Channel 240V 20A with Power Supply

$Clipsal\Clipsal_L5504RVF20.jpg$

Description

DIN Rail Mounted Relay, 240 Volt AC, Supply: 15-36 Volt DC, 20 Amp, Number of Channels: 4, Number of Modules: 12, Terminal Type: Screw, Mounting Method: DIN Rail, 215mm Width, 85mm Height, 65mm Depth

Key Specifications

Barcode (EAN-13)	9311554574505
SKU	CLIL5504RVF20
Brand	Clipsal
Range Name	C-Bus
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4-channel 20A relay module, DIN rail-mounted 12M DIN modules wide 4-channels of voltage-free relay switching Rated at 20Amp incandescent, 20Amp HID or 20Amp fluorescent load per channel Relays feature magnetic latching Built-in mechanical level for manual changeover of relay state Incorporates a software selectable network burden and C-Bus system clock A maximum of 10 units may be connected to any C-Bus network Incorporates an inbuilt 200mA C-Bus power supply C-Bus Learn Enabled
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	L5504RVF20
Channels	4 Channel
Height	85 mm
Depth	65 mm
Current	20 Amp
Mounting Method	DIN Rail
Terminal Type	Screw
Voltage	240 Volt
Width	215 mm
