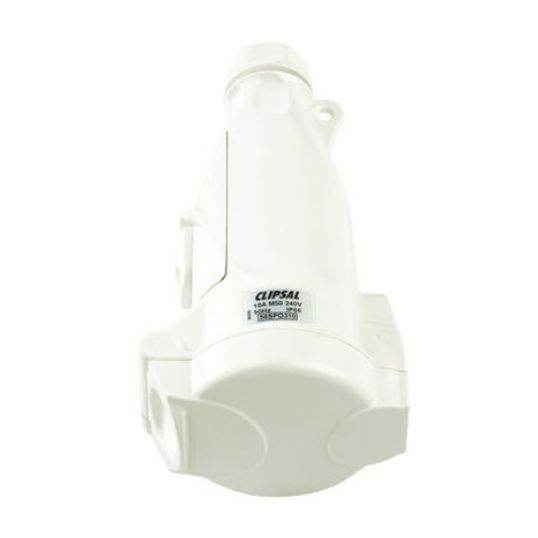

Clipsal Pendant Outlet Switched Weatherproof 1Ph 10A 240V 3 Pin Flat 1P+N+E Chemical Resistant White IP66

$Clipsal\Clipsal_56SPO310RW.jpg$

Description

Pendant Outlet Switched Weatherproof, 250 Volt, 10 Amp, 1 Phase Phase, 50 Hz, Straight Control, 1 Gang, 1 + N + E Pole, M20, Screw Terminal, 3 Pin Flat, IP66, Polybutylene Terephthalate Housing, White, -25 to 75 deg C, 83 mm Height, 83 mm Width, 183 mm Depth

Key Specifications

Barcode (EAN-13)	9311554662356
SKU	CLI56SPO310RW
Brand	Clipsal
Range Name	56 Series
Product Type	Pendant Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56SPO310-RW
Colour	White
Control Type	Straight
Current	10 Amp
Depth	183 mm
Height	83 mm
Frequency	50 Hz
Housing Material	Polybutylene Terephthalate
IP Rating	IP66
Number Of Gangs	1 Gang
Number Of Poles	1 Pole
Phase	1 Phase
Terminal Type	Screw
Pin Configuration	3 Pin Flat
Temperature	-25 to 75 deg C
Thread Type	M20
Voltage	250 Volt
Width	83 mm
