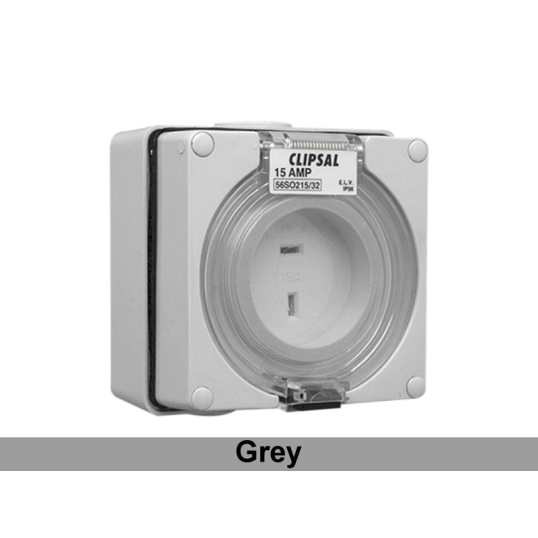

Clipsal Socket Outlet Surface Mounting Weatherproof 1Ph 15A 32V 2 Pin Polarised Grey IP66

Description

Socket Outlet Weatherproof, 32 Volt, 15 Amp, 50 Hz, 1 Phase Phase, Straight Angle, 2 Pin Polarised (1 + Neutral), Screw Connection, 2xM20/1xM25 Conduit Entry, 1.5-6 sq-mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 107 mm Height, 101 mm Width, 77 mm Depth

Key Specifications

Barcode (EAN-13)	9311554203559
SKU	CLI56SO215/32GY
Brand	Clipsal
Range Name	56 Series
Product Type	Socket Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56SO215/32-GY
Colour	Grey
Angle	Straight
Conduit Entry	2xM20/1xM25
Connection Type	Screw
Current	15 Amp
Depth	77 mm
Frequency	50 Hz
Height	107 mm
IP Rating	IP66
Material	Polycarbonate
Mounting Method	Surface
Phase	1 Phase
Pin Configuration	2 Pin Polarised (1 + Neutral)
Temperature	-25 to 75 deg C
Terminal Capacity	1.5-6 sq-mm
Voltage	32 Volt
Width	101 mm
