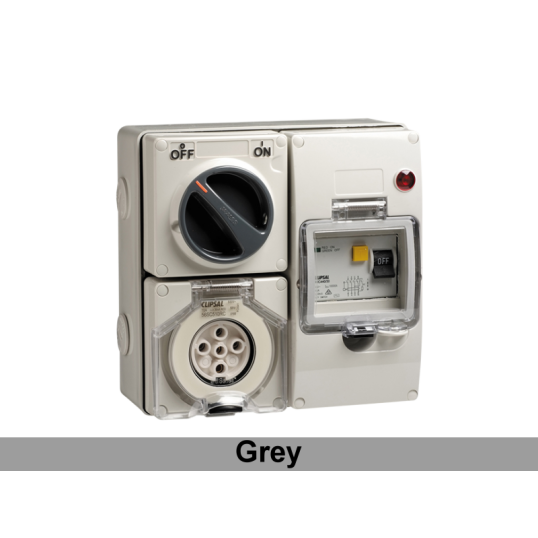

Clipsal Switch Socket Outlet Surface Mounting RCD Protected 3Ph 20A 500V 5 Pin Round 30mA Round Grey IP66

Description

Switched Socket Outlet RCD Protected, 500 Volt, 20 Amp AC1, 3 Phase Phase, 5 Pole, 4 Gang, 5 Pin Round, 30 mA Trip Sensitivity, Screw Connection, 1.5-16 mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 204 mm Height, 204 mm Width, 135 mm Depth

Key Specifications

Barcode (EAN-13)	9311554277284
SKU	CLI56SC520RCGY
Brand	Clipsal
Range Name	56 Series
Product Type	Socket Outlets RCD Protected

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56SC520RC-GY
Colour	Grey
Connection Type	Screw
Depth	135 mm
Height	204 mm
IP Rating	IP66
Material	Polycarbonate
Mounting Method	Surface
Number Of Gangs	4 Gang
Number Of Poles	5 Pole
Phase	3 Phase
Pin Configuration	5 Pin Round
Temperature	-25 to 75 deg C
Terminal Capacity	1.5-16 mm
Trip Sensitivity	30 mA
Voltage	500 Volt
Width	204 mm
