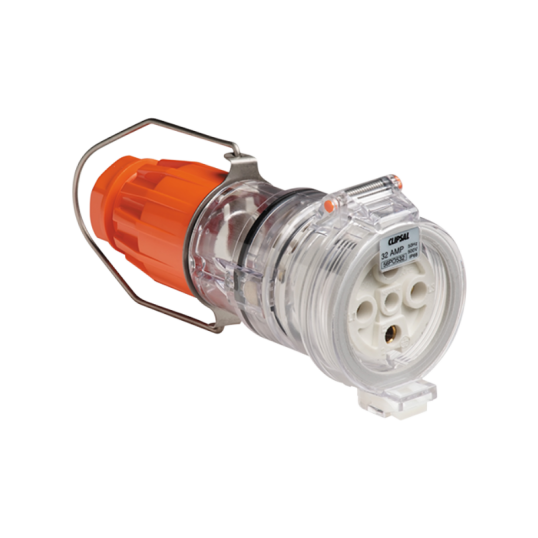

Clipsal 56 Series Pendant Outlet Un-Switched Weatherproof 3Ph 32A 500V 5 Pin Round Orange IP66

$ClipsalNew\C0002426.png$

Description

Pendant Outlet Un-Switched Weatherproof, 3 Phase, 32 Amp, 500 Volt AC, 50 Hz, Straight, 3 Pole + N + E, M40 Thread, Screw Terminal, 5 Pin Round, IP66, Polycarbonate, Brass, Orange, -25 to 75 deg C, 90 mm Height, 90 mm Width, 263 mm Depth

Key Specifications

Barcode (EAN-13)	9311554203498
SKU	CLI56PO532EO
Brand	Clipsal
Range Name	56 Series
Product Type	Pendant Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56PO532-EO
Colour	Orange
Current	32 Amp
Depth	263 mm
Control Type	Straight
Frequency	50 Hz
Height	90 mm
IP Rating	IP66
Number Of Poles	3 Pole
Phase	3 Phase
Pin Configuration	5 Pin Round
Temperature	-25 to 75 deg C
Terminal Type	Screw
Voltage	500 Volt
Thread Type	M40
Width	90 mm
