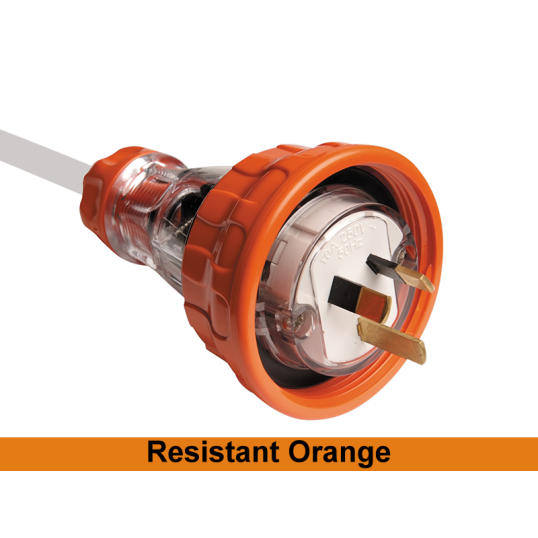

Clipsal Plug Straight Body Weatherproof 1Ph 10A 250V 3 Pin Flat IP66 Chemical Resistant Orange IP66

Description

Plug Straight Weatherproof, 250 Volt, 10 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 0.75-1 sq-mm Terminal Capacity, Cable Gland Cable Entry, M20 Cable Gland Size, 7-12.5 mm Cable Nominal Diameter, IP66, Polybutylene Terephthalate, Orange, -25 to 75 deg C, 67 mm Height, 67 mm Width, 112.5 mm Depth

Key Specifications

Barcode (EAN-13)	9311554071561
SKU	CLI56P310RO
Brand	Clipsal
Range Name	56 Series
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56P310-RO
Angle	Straight
Cable Nominal Diameter	7-12.5 mm
Cable Gland Size	M20
Cable Entry	Cable Gland
Colour	Orange
Connection Type	Screw
Current	10 Amp
Depth	112.5 mm
Height	67 mm
IP Rating	IP66
Material	Polybutylene Terephthalate
Pin Configuration	3 Pin Flat
Phase	1 Phase
Terminal Capacity	0.75-1 sq-mm
Temperature	-25 to 75 deg C
Voltage	250 Volt
Width	67 mm
